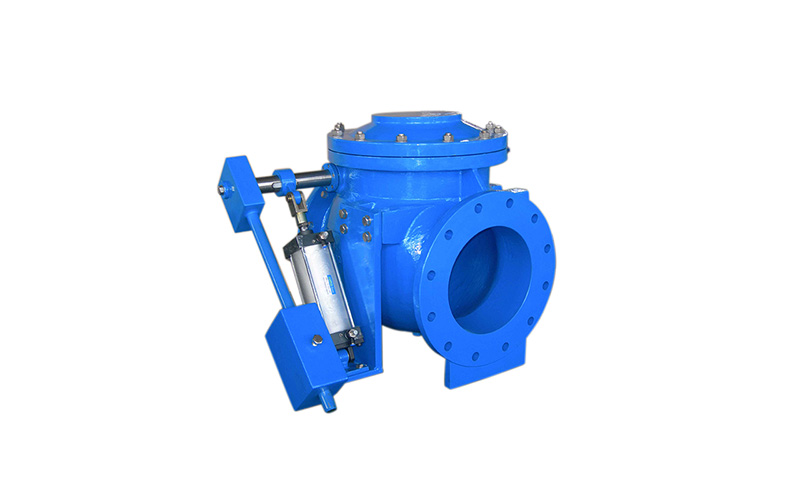

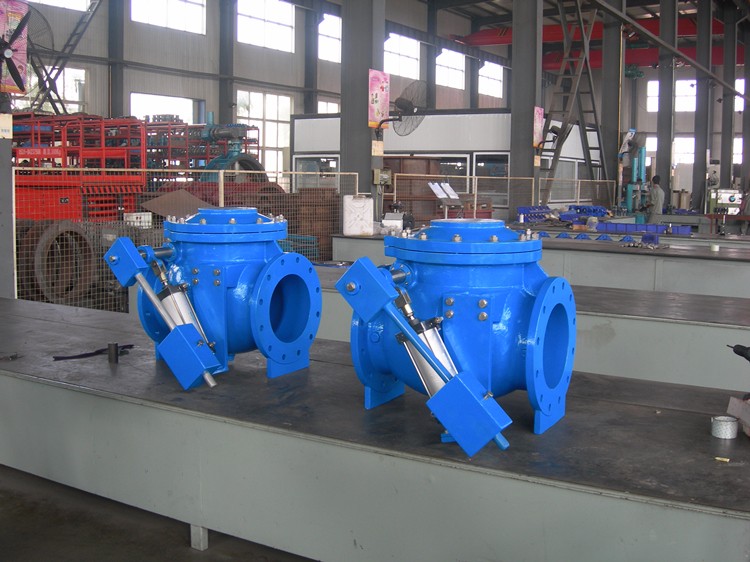

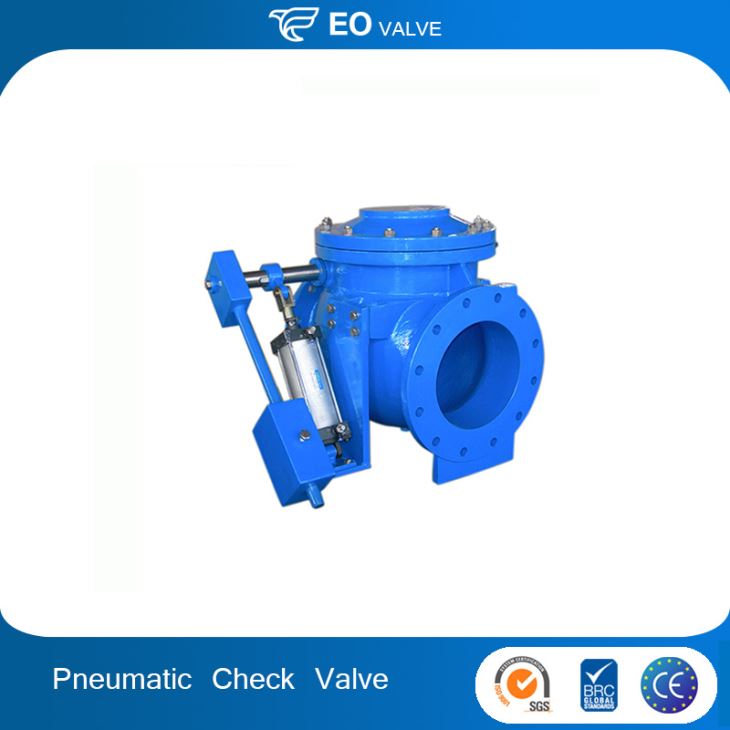

DN200 Customized 6 Inch Swing Pneumatic Check Valve

DN200 Customized 6 Inch Swing Pneumatic Check Valve

DN200 Customized 6 inch Swing Pneumatic Check Valve is suitable for cleaning medium and is not suitable for medium containing solid particles and high viscosity medium.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Check
Pressure:Low Pressure
Power:Pneumatic
Material:Casting
Temperature of Media:Medium Temperature
Media:Gas
Port Size:Standard
Place of Origin:China (Mainland)
Model Number:JBCV-16
Brand Name:EO
Application:General
color:customized
Body material:cast iron, ductile iron
Product name:DN200 customized 6 inch swing pneumatic check valve
Connection:Flange Ends
Certificate:ISO9001:2008 CE
Color:Blue
Standard:ANSI BS DIN JIS
Medium:Water Oil Gas
Size:Standard Size
Type:pneumatic check valve





Brief introduction

It is suitable for cleaning medium and is not suitable for medium containing solid particles and high viscosity medium.



Standard Features

Design as AWWA  C-508

For class125/150Lb flange mounting.

Epoxy fusion coating.



Pressure and Temperature ratings:

Working PressurePN10 / PN16 / PN25
Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable MediaWater, Oil and gas.


Application

 It is suitable for all kinds of pipelines with nominal pressure PN1.0MPa~42.0MPa and Class150-2500, nominal diameter DN15~1200mm and NPS1/2~48, and  at working temperature 196~540 C. It is used to prevent backflow of media. Through the selection of different materials, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea and many other media.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
