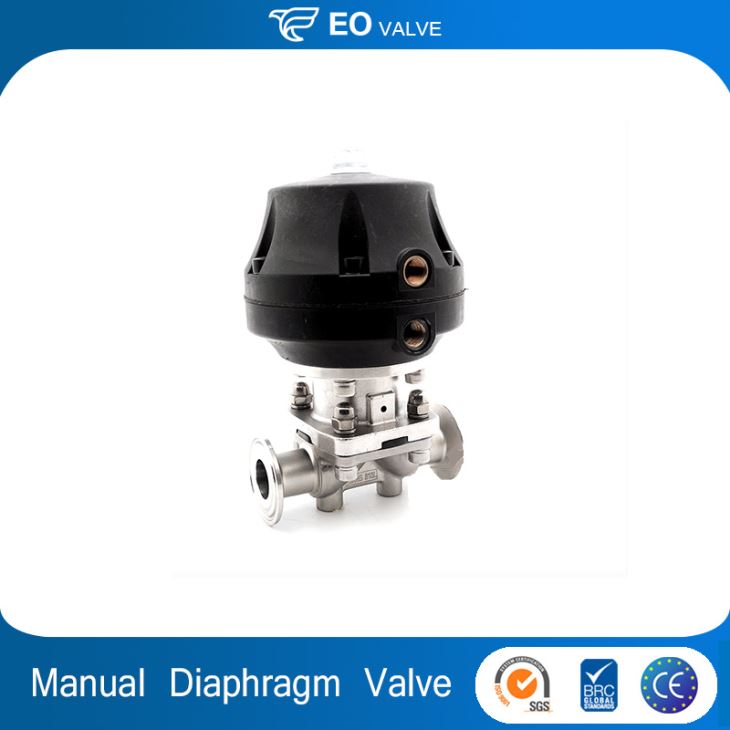

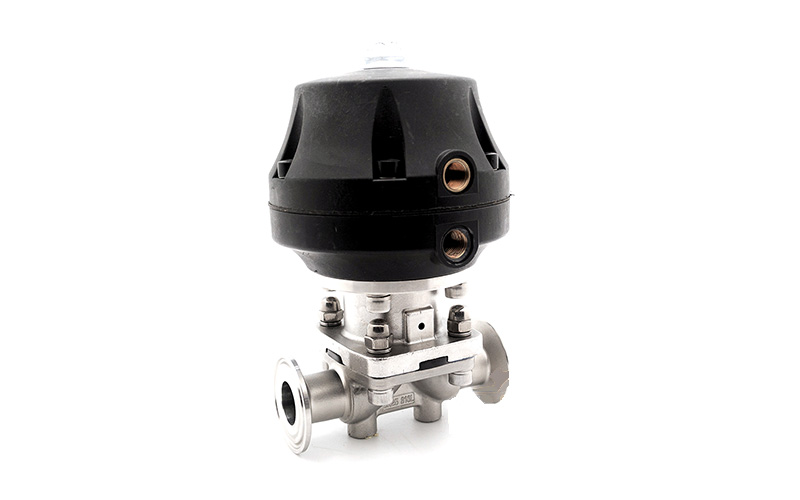

Sanitary Pneumatic Diaphragm Valve Made In China
Sanitary Pneumatic Diaphragm Valve Made in China;Pressure:Low Pressure,Material:Stainless Steel,Port Size:DN6- DN65 or 1/4"- 2.1/2",Model Number:VDN,Brand Name:EO,Operating Type:Manual, Pneumatic.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Diaphragm |
| Pressure: | Low Pressure |
| Power: | Pneumatic |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN6- DN65 or 1/4"- 2.1/2" |
| Place of Origin: | China (Mainland) |
| Model Number: | VDN |
| Brand Name: | EO |
| Application: | General |
| Material: | SS304 or SS316L |
| Connection: | Clamp, Weld, Male, Female, Flange, Union or Combinations |
| Operating Type: | Manual, Pneumatic |
| Standard: | 3A, SMS, DIN, ISO |
| Body Type: | Forged |
| Applied Industries: | Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |
| Available Structure: | Straight, Tee, U-type, Tank Botto |
Product Description
| Product Name: | Sanitary Diaphragm Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, ISO |
| Size: | DN6- DN65 or 1/4"- 2.1/2" |
| Connection Way: | Weld, Clamp, Male, Female, Flange, Union or Combinations |
| Avaliable Structure: | Straight, Tee, U-type, Tank Bottom, or Customization |
| Operated: | Manual, Pneumatic |
| Sealing Material | EPDM+PTFE Double Layer (Standard) |
| EPDM/ Silicone/ FPM (Optional) | |
| Surface Finishing: | Ra≥0.4-0.8 um (Internal) Ra≥0.8-1.6 um (External) |
| Max Temperature: | 230℃ |
| Max Pressure: | 10 Bar |
| Packing Details: | Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements. |
