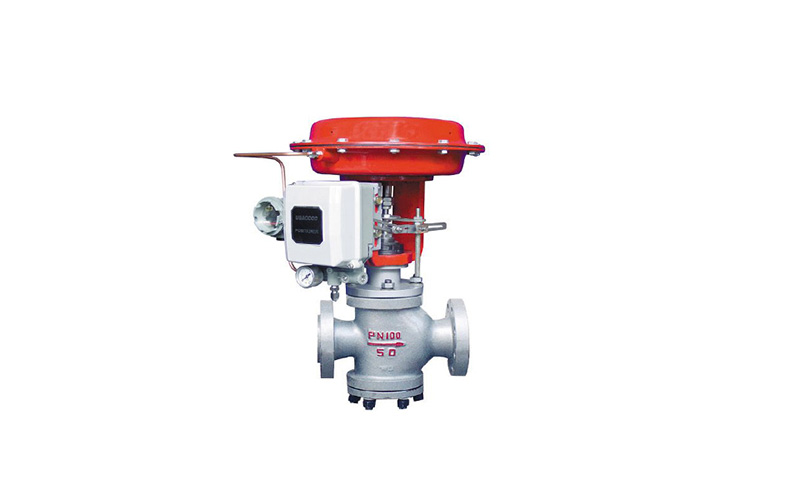

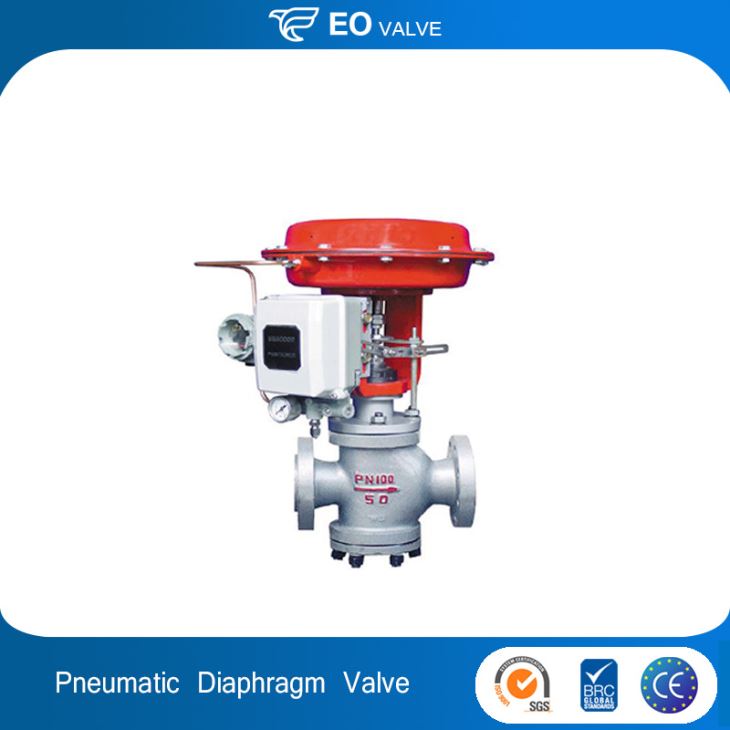

Pneumatic Diaphragm Steam Control Valve

Pneumatic Diaphragm Steam Control Valve

Pneumatic Diaphragm Steam Control Valve;Pressure:Medium Pressure,Applicable medium:liquids, gases, steam, air ,oil,Body material:Cast Stainless Steel.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Pneumatic
Material:Stainless Steel
Temperature of Media:Medium Temperature
Media:Water
Port Size:1"-8"
Place of Origin:China (Mainland)
Model Number:DN25~200mm
Brand Name:EO
Application:General
Product name:pneumatic control valve
Connection:Flanged
Applicable medium:liquids, gases, steam, air ,oil
Color:Customer's Request
working pressure:PN16-PN64
Body material:Cast Stainless Steel
Working Temperature:-40℃-450℃
Certificate:ISO9001, CE
Packing:PTFE
MOQ:1 Pc



 Product advantages

1. Top -bottom guided double seat control valve valve seat, good stability

2. The pneumatic linear actuator consists of a diaphragm housing

3. Large adjustable range, Inherent adjustable ratio 50

4.With Insulation jacket

5.Actuator Accessories

Top-fitted handwheel for emergency operation

Positioner

Limit switches




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
