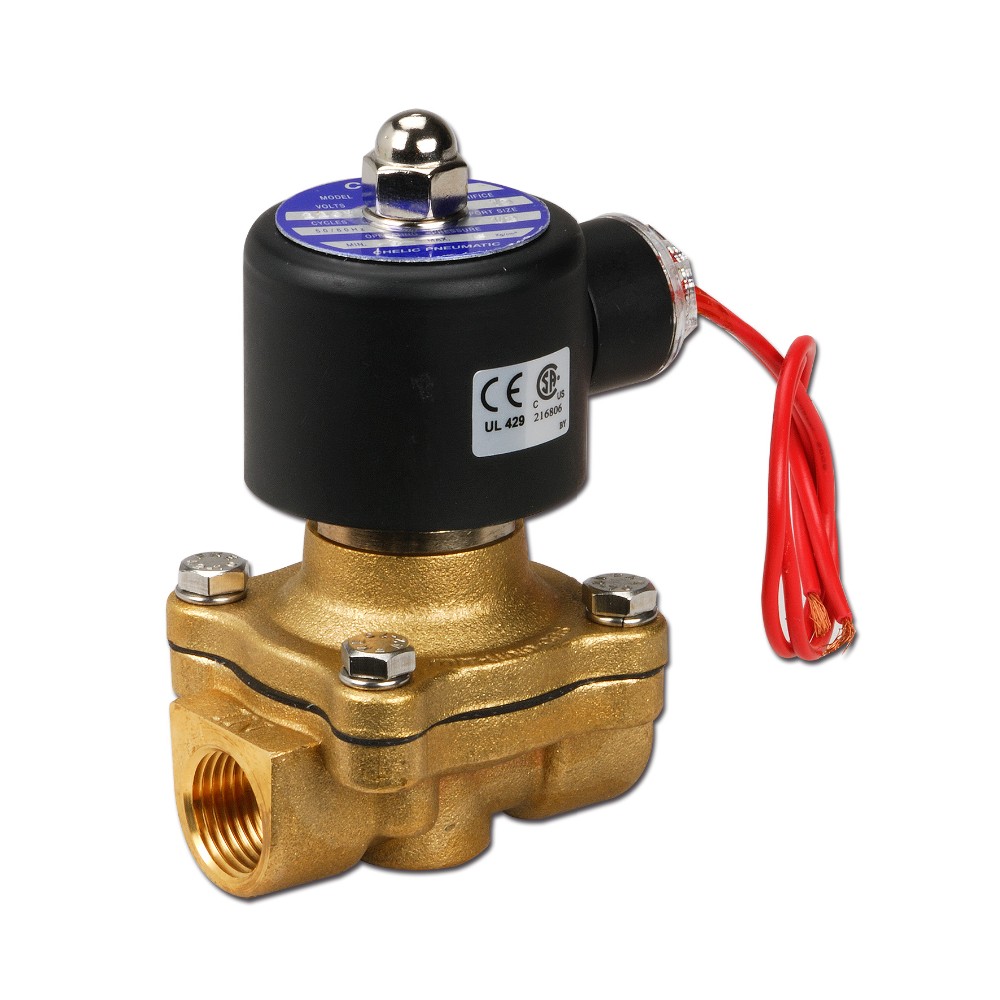

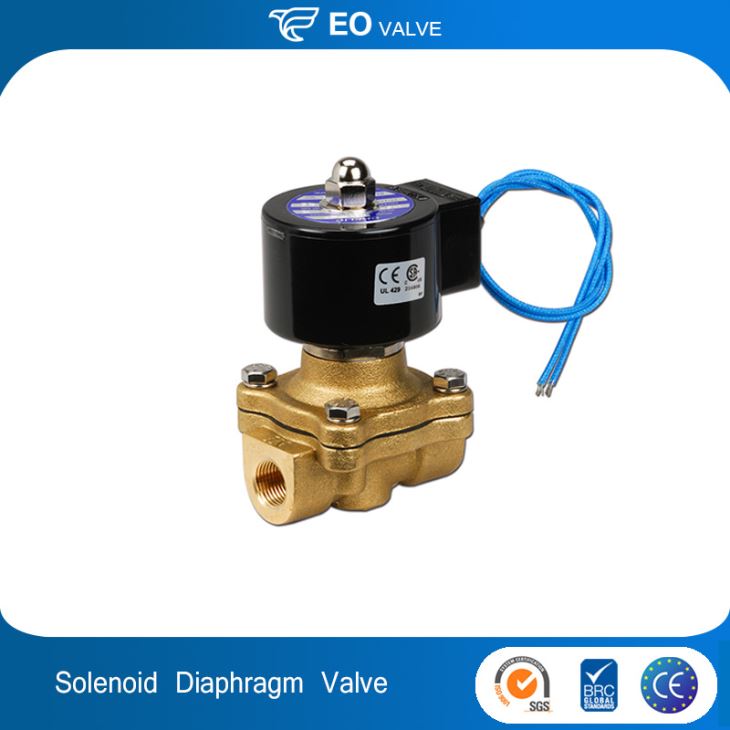

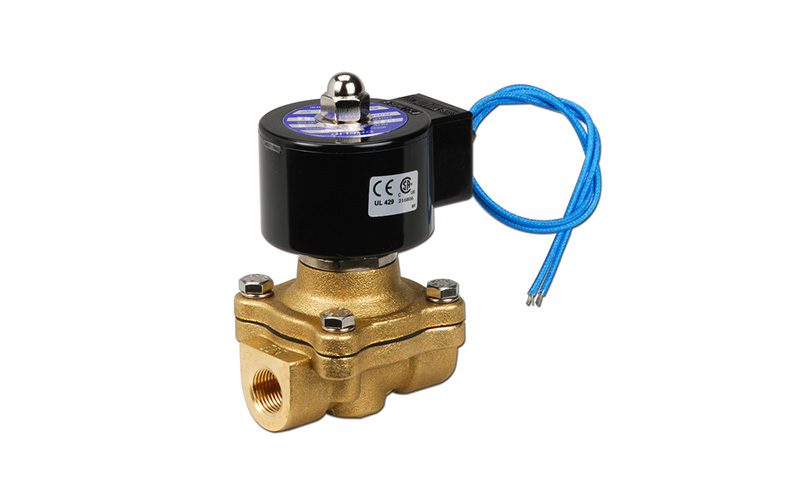

High Flow Direct Diaphragm Type Solenoid Valve
High Flow Direct Diaphragm Type Solenoid Valve;Pressure:Medium Pressure,Material:Brass,Media:air ,water ,oil,Model Number:SUW-10~50,Pressure range:0~70 kpa.

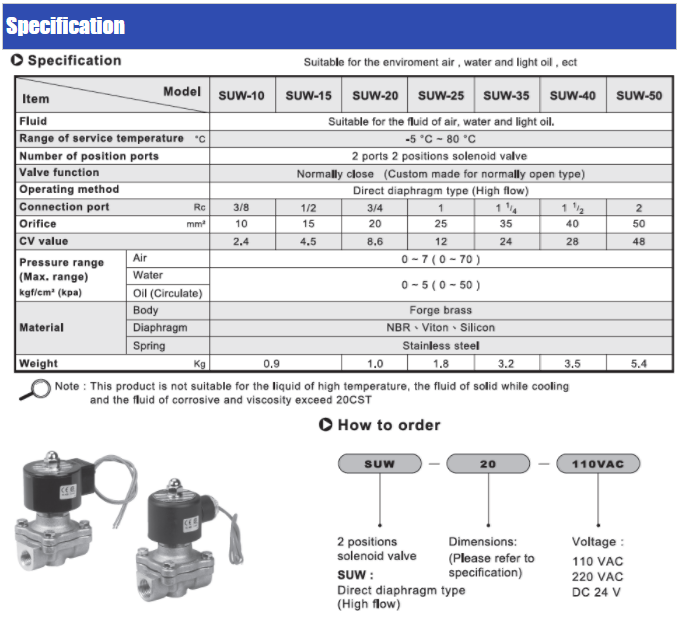

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Brass |
| Temperature of Media: | Medium Temperature |
| Media: | air ,water ,oil |
| Port Size: | 1" 3/4" 3/8" 1/2" 5/4'' 3/2'' 2'' |
| Place of Origin: | China (Mainland) |
| Model Number: | SUW-10~50 |
| Brand Name: | EO |
| Application: | General |
| Range of service temperature: | -5 degree~80 degree |
| Color: | Black |
| Number of position port: | 2 ports 2 position solenoid valve |
| Valve function: | Normally close |
| Operating method: | Direct diaphragm type(high flow) |
| Pressure range: | 0~70 kpa |
| Weight: | 0.9~5.4kg |
| Sample: | Provided |
