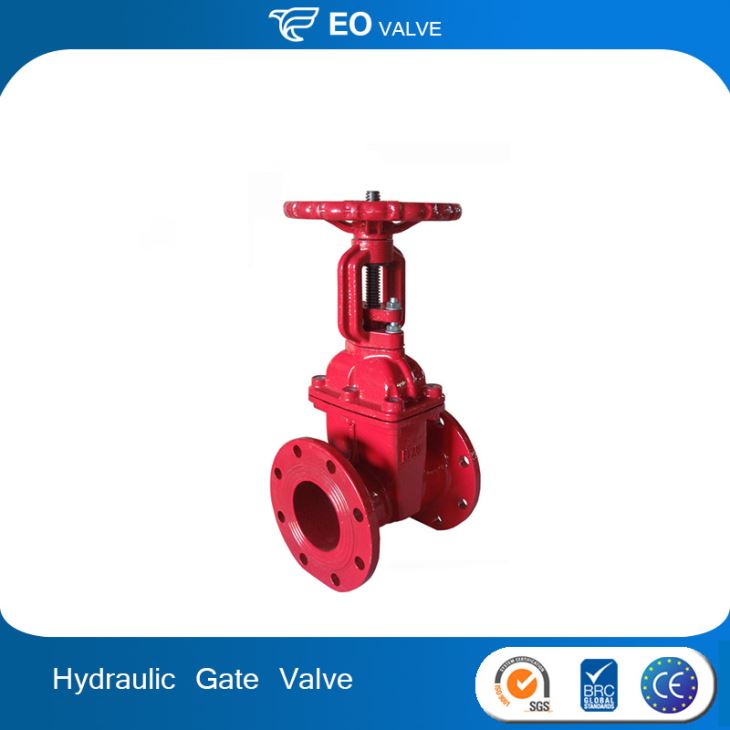

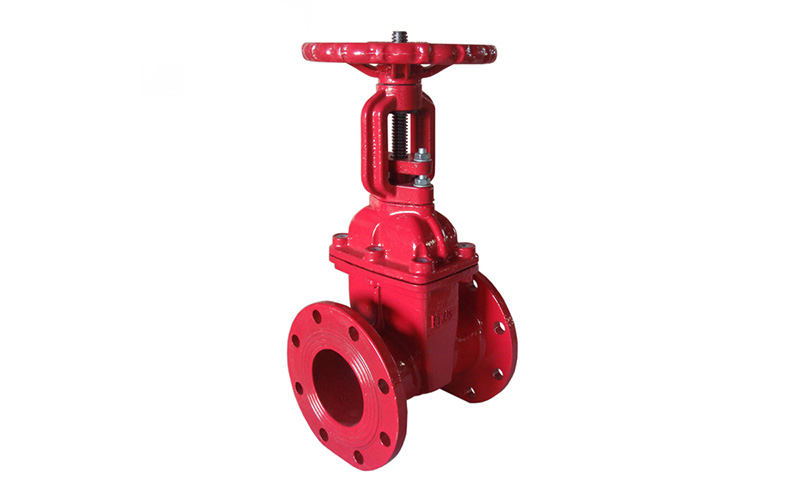

Hydraulic Plate Gate Valve

Hydraulic Plate Gate Valve

Hydraulic Plate Gate Valve;Thrust bearings to reduce operating torque.Three O-ring can significantly slow down the phenomenon of water leakage, and in the case of pressure and constant water to replace the O-ring.Precision machining valve rod, can reduce operating torque.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Gate
Pressure:Medium Pressure
Power:Manual
Material:Casting, Ductile Cast Iron
Temperature of Media:Normal Temperature
Media:Water
Port Size:DN40-DN700
Place of Origin:China (Mainland)
Model Number:Z41X-16
Brand Name:EO
Application:General

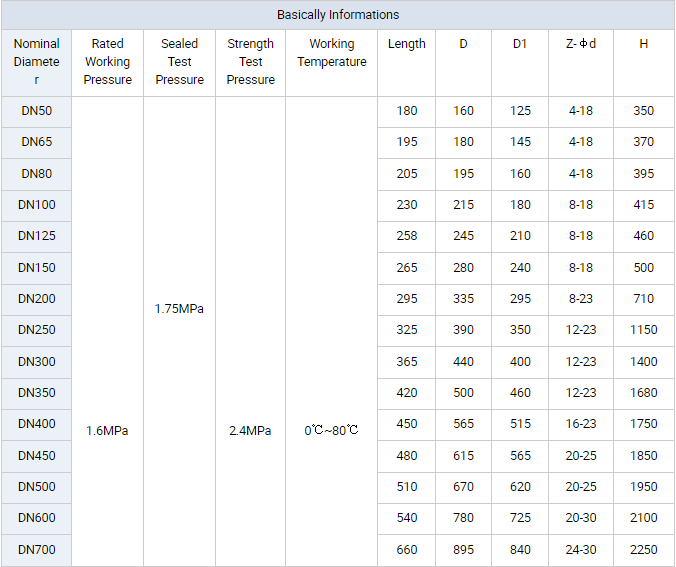

Nominal Diameter:50mm-700mm
Rated Working Pressure:1.6MPa
Sealed Test Pressure:1.75MPa
Strength Test Pressure:2.4MPa
Working Temperature:0℃~80℃
Applicable Medium:Water, Oil, Gas
Color:Red, Blue or Customized
Flange Standard:BS or ANSI
Seal Type:Soft






Main Features

1. Thrust bearings to reduce operating torque.

2. Three O-ring can significantly slow down the phenomenon of water leakage, and in the case of pressure and constant water to replace the O-ring.

3. Precision machining valve rod, can reduce operating torque

4. Internal and external usd of rubber fully coated, connect firmly, can avoid fall of while long-term use.

5. No dent at the bottom of valve body, is not easy to cause debris accumulation.

6. In the body, the use of non-toxic powder epoxy resin coating, strengthening anti-corrosion ability, improve the quality of water.
