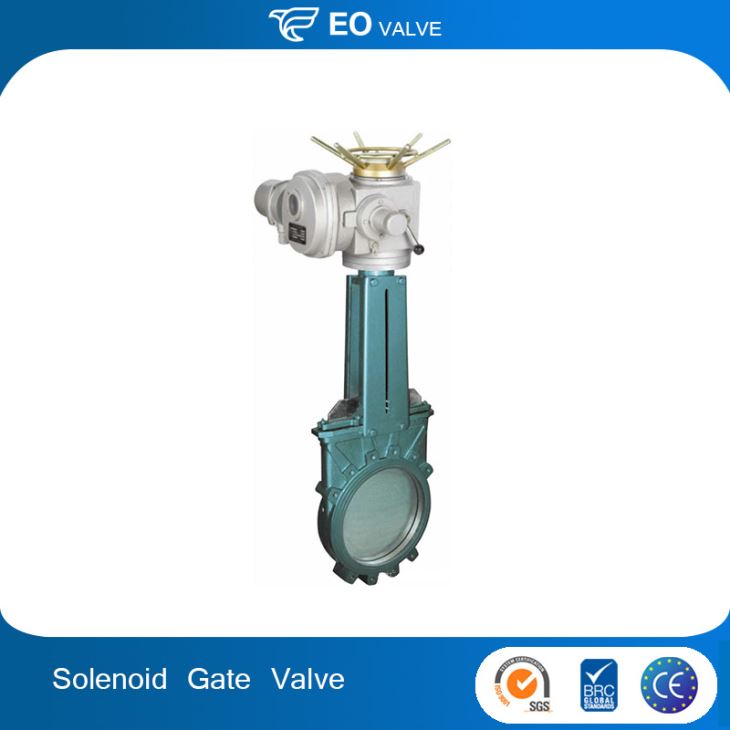

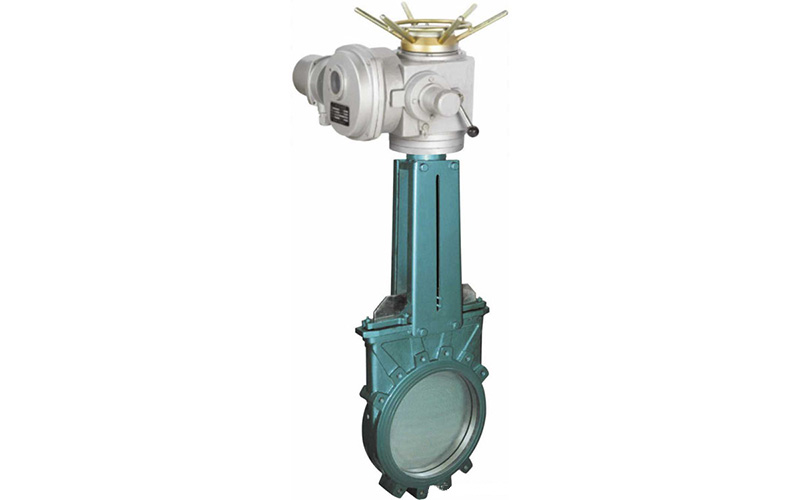

China Made Low Price Steam Electric Gate Valve With Actuator

China Made Low Price Steam Electric Gate Valve With Actuator

It’s a linear motion valve, general match with on-off type Multi-turn actuator.Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to turn on and turn off the fluid medium in the pipe.Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.

Send Inquiry


Quick Details
Standard or Nonstandard:Other
Structure:Gate
Pressure:Medium Pressure
Power:Solenoid
Material:Stainless Steel
Temperature of Media:Medium Temperature
Media:Water
Port Size:Standard
Place of Origin:China (Mainland)
Model Number:gate valve
Brand Name:EO
Application:General
Product name:gate valve
Interface size:standard
Body material:WCB, Ductime iron, 304, 316316L
Disc:WCB, Ductime iron, 304, 316316L
Structure type:gate valve
Control type:Normally close
Seal material:EPDM, metal seal
Connection:wafer, flange
Norminal pressure:PN10,PN16,CLASS 150LB,CLASS 300LB
Design standard:DIN,ASNIS,JIS






Gate Valve Feature

1,  It’s a linear motion valve, general match with on-off type Multi-turn actuator.

2,  Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to turn on and turn off the fluid medium in the pipe.

3,  Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.


Gate Valve parameters

design standard : GB/T12234

body material:  cast steel

Drive mode: electric , pneumatic and manual

packing: Asbestos and flexible graphite

sealing face: alloy steel or hard alloy

nominal pressure: PN1.6~20.0MPa

medium: water,oil,steam etc

temperature: ≤425℃


Gate Valve Electric actuator data:

Voltage: 380V AC

Frequency: 50Hz

Type:On-off/Modulating

Input signal: switching value/4~20mA

Output signal: switching value/4~20mA

Fieldbus: Profibus

Over heat protection

Torque switch / limit switch


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
