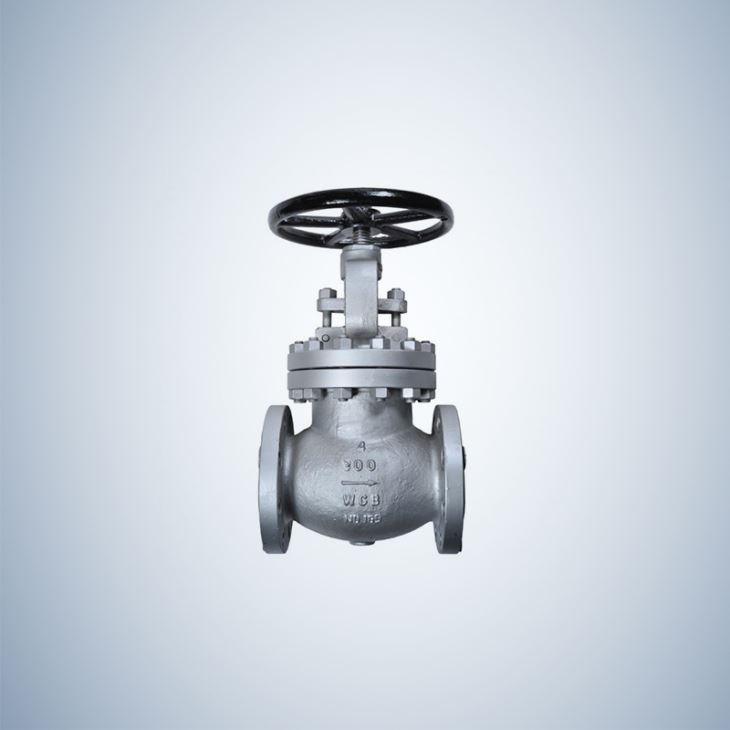

4 Inch WCB Globe Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 4 inch wcb globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 4 inch wcb globe...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 4 inch wcb globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 4 inch wcb globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Manufactures 4 Inch Casting Bolted Bonnet Globe Valve. We are a Professional Industrial valves Supplier in China.
Product Specifications :
Design and Manufacture
Flange Dimension | Inspection- Test | |
ANSI B16.10 | ANSI B16.34 | VERTICAL-ALIGN: baseline;API 598 |
DESIGN FEATURES:
STRAIGHT PATTERN BODY DESIGN
TAPERED, GLOBE, OR PLUG DISC
RENEWABLE OR WELDED SEAT
BOLTED BONNET, BACK SEAL STRUCTURE
OS&Y, OUTSIDE SCREW AND YOKE
EXTENDED STEM DESIGN FOR LOW TEMPERATURE
ISO TOP FLANGE FOR BARE STEM GLOBE VALVE
MATERIAL LIST
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | DISC | A105 | A350 LF2 | A182 F316 |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE/SOFT STEEL/304SS/316SS METAL RIN | ||
6 | BONNET | A216 WCB | A352 LCC | A351 CF8M |
7 | DISC NUT | CARBON STEEL | A350 LF2 | A182 F316 |
8 | BOLT | A193 B7/BM | A320 L7/L7M | A193 B8M |
9 | NUT | A194 2H/2HM | A194 7/7M | A194 8M |
10 | BACK SEAT BUSHING | 276 410 | A276 304 | A276 316 |
11 | PACKING | GRAPHITE/PTF | ||
12 | GLAND FLANGE | A216 WCB | A352 LCC | A351 CF8M |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
15 | EYEBOLT | A193 B7/BM | A320 L7/L7M | A193 B8 |
16 | STEM NUT | A439 D2/Cu-ALLOY | ||
17 | HANDWHEEL | STEEL/DUCTILE IRON | ||
GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE
NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
