Worm Gear Flange Triple Offset Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China worm gear flange triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WORM GEAR OPERATE TRIPLE OFFSET BUTTERFLY VALVE STANDARD 1.......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China worm gear flange triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WORM GEAR OPERATE TRIPLE OFFSET BUTTERFLY VALVE STANDARD 1....
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China worm gear flange triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

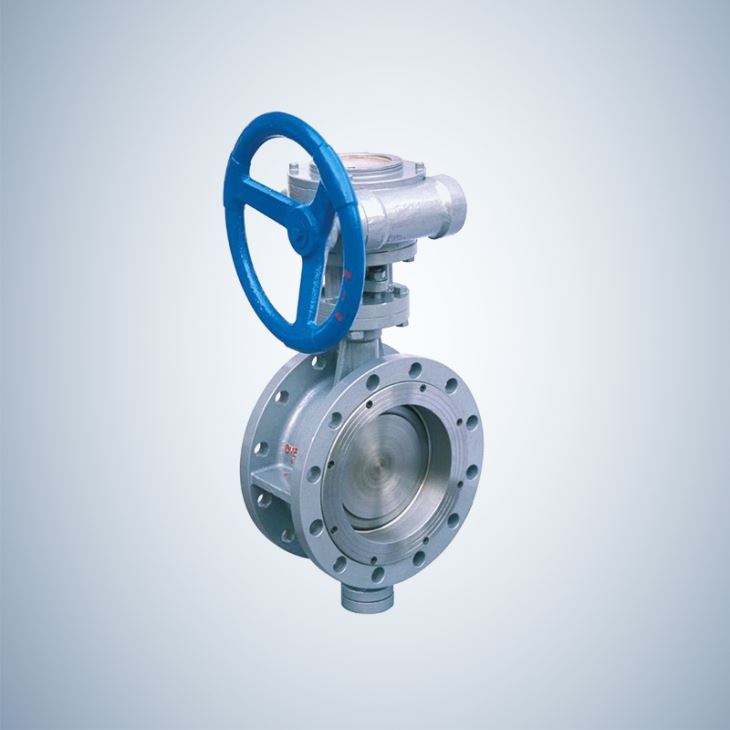

WORM GEAR OPERATE TRIPLE OFFSET BUTTERFLY VALVE
Product Specifications :

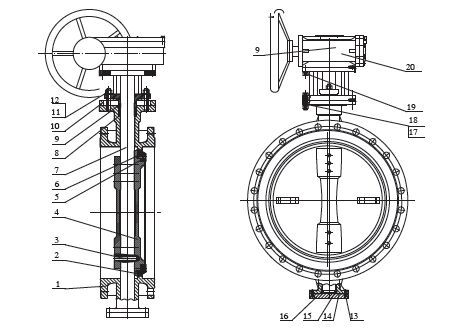

MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
STANDARD :
1. DESIGN AND MANUFACTURE: API 190/MSS SP-67/MSS SP-68
2. FACE TO FACE DIMENSIONS: API 609/BS 5155
3. FLANGE ENDS DIMENSIONS(NPS1/2”-24”/NPS 26”~36”): ASME B16.5/AMSE B16.47
4. BW ENDS DIMENSIONS: ASME B16.25
5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
6. PRESSURE: CLASS 150~CLASS600
7. SIZE: NPS 2″~36″
MATERIAL OPTION :
Carbon steel | A216 Gr. WCB , WCC , WCA , etc |
Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc |
Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
Stainless Steel | A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
FEATURES :
1. Small and lightweight, easy assembling and maintenance, and can be installed in any position.
2. Simple and compact structure with the 90℃ rotating features in rapid opening and closing.
3. Minimized and energy saving operating torque
4. Flow characteristics close to straight line with excellent regulation performance
5. Thousands of times of open/close test to ensure long service life
6. Full seal, no gas leak
7. Different parts material can apply to a variety of medium.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
