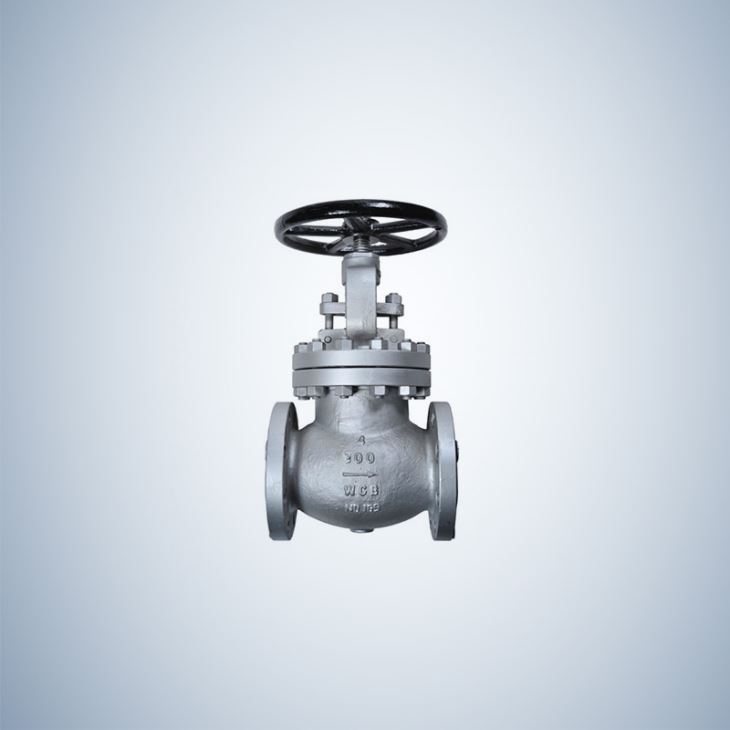

BS1873 Cast Steel Globe Valve Flanged Ends

BS1873 Cast Steel Globe Valve Flanged Ends

Products Details : Shenyang EO Valve Co.,Ltd is a leading China bs1873 cast steel globe valve flanged ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd is a leading China...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China bs1873 cast steel globe valve flanged ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China bs1873 cast steel globe valve flanged ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Specifications :

Technical Specification:

Special features:

Body/bonnet/disc material: A216 WCB

Stem material: A182 F6

Sealing ring: A105 + 13Cr, A105 + STL, A351 CF8M

Disc ring: 13Cr, STL, A351 CF8, CF8M

Sizes: 1 1/2-16"

Pressure (class): 150/300/600/900lbs

Medium: water, air and oil


Application standard:

Design and manufacture: BS1873, ANSI B16.34

Face to face: ANSI B16.1

Flange end: ANSI B16.5

Inspection: API 598

Pressure-temperature rating: ANSI B16.34


Material List:

NO.

Parts name

Material

Stainless SteelCast Steel

1

Body

A351 CF8

A216 WCB

2

Disc

A182-F304

2Cr13

3

Stem

A182-F304

A182-6a

4

Disc cover

A182-F304

2Cr13

5

Spiral wound gasket

PTFE

Flexible Graphite

6

The seal seat

F304

2Cr13

7

Valve Cover

A351-CF8

A216-WCB

8

Bolt

A193-B8

A193-2H

9

Nut

A194-8

A194-2H

10

Packing

PTFE

Flexible Graphite

11

Press kit packing

CF8

2Cr13

12

Packing plate

CF8

A216-WCB

13

Pin

410

35

14

Bolt

A193-B7

A193-B7

15

Stem nut

           Cu

Cu

16

Screw

410

A105

17

Hand wheel

C.S

C.S

18

Nameplate

L2

L2

19

Nut

A193-B8

A194-2H

20

Washer

410

Q235A


Our advantages:

1). Scale: 82,000.00 square meters non-dust workshop

2). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

3). R&D: owned valve research and design center with strong technical team.

4). The foundry is built to promise our raw material better before production.

5). Condition: good after sale service.


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
