Y Type Pressure Sealing Globe Valve
roducts Details : Shenyang EO Valve Co.,Ltd is a leading China y type pressure sealing globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China y type...
roducts Details :
Shenyang EO Valve Co.,Ltd is a leading China y type pressure sealing globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China y type pressure sealing globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

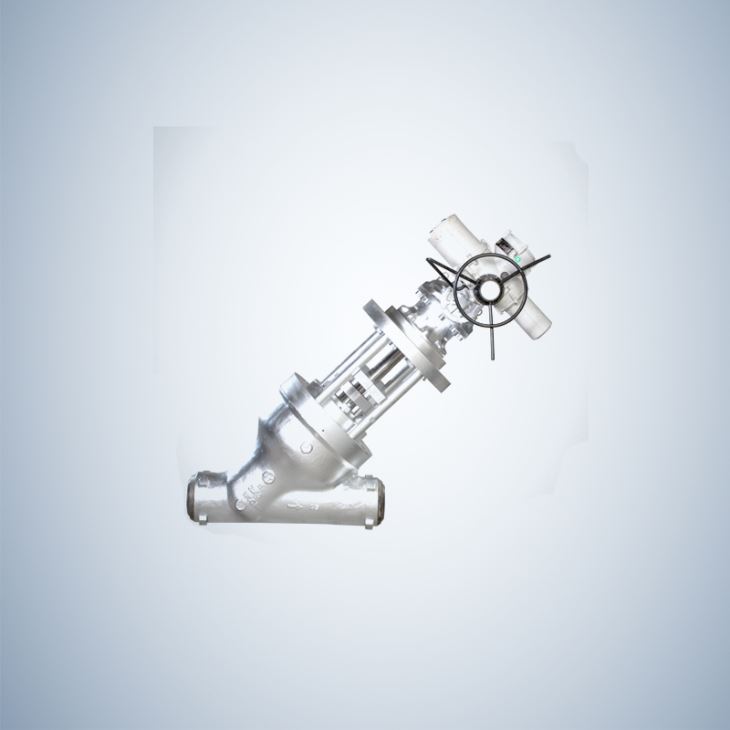

Y type Cast steel Butt weld Pressure seal globe valves.
Product Specifications :
STANDARDS:
Design:BS1873, ASME 16.34
Test:API598
Regular Port
Outside Screw and Yoke(OS&Y)
Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet
Backseat
Solid Disc(Plug, Ball/Spherical, Throttling)
Butt Weld Ends to ASME B16.25
Flanged Ends to ASME B16.5 and B16.47
MATERIAL LIST:
ITEM | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A217 WC6 | A351 CF8M |
2 | SEAT | A105 | A182 F11 | A182 F316 |
3 | DISC | A105 | A182 F11 | A182 F316 |
4 | DISC NUT | A105 | A182 F11 | A182 F316 |
5 | STEM | A182 F6 | AISI 4140/4340 | A182 F316 |
6 | SEALING RING | AISI 1008/SS304L/SS316L | ||
7 | BONNET | A216 WCB | A217 WC6 | A351 CF8M |
8 | YOKE | A216 WCB | A217 WC6 | A351 CF8 |
9 | LANTERN RING | 276 410 | 276 410 | 276 316 |
10 | PACKING | GRAPHITE/PTFE | ||
11 | LOCK NUT | CARBON STEEL | CARBON STEEL | STAINLESS STEEL |
12 | CUPPING RING | CARBON STEEL | CARBON STEEL | STAINLESS STEEL |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND FLANGE | A216 WCB | A216 WC6 | A351 CF8 |
15 | GLAND NUT | A194 2H/2HM | A194 4 | A194 8 |
16 | EYEBOLT | A193 B7/B7M | A193 B16 | A193 B |
17 | GEAR | ASSEMBLY | ||
| SEALING FACE OVERLAY | API TRIMS AVALIABLE | |||
GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC.ARE AVALIABLE
NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST
Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
3). R&D: valve research and design center
4).The foundry is built to promise our raw material better before production
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
