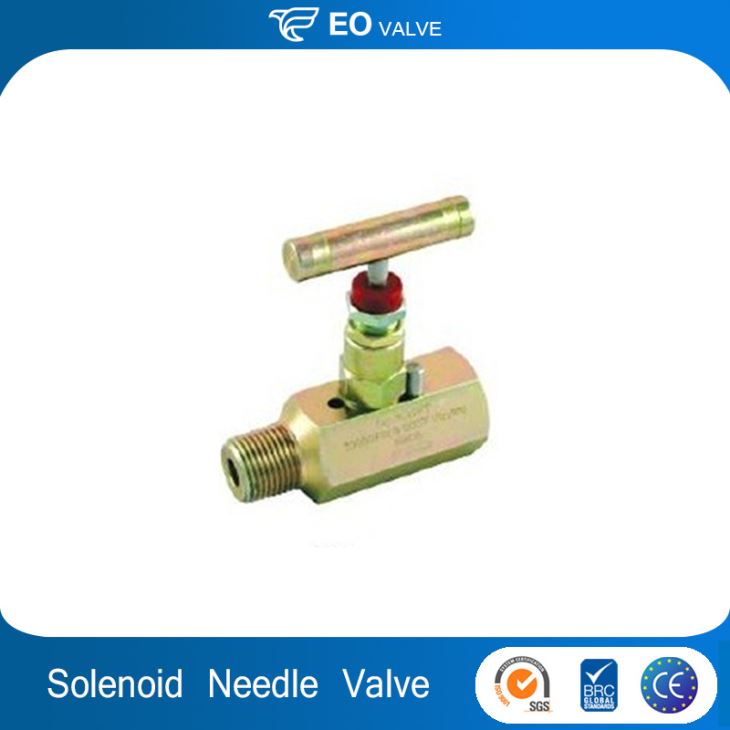

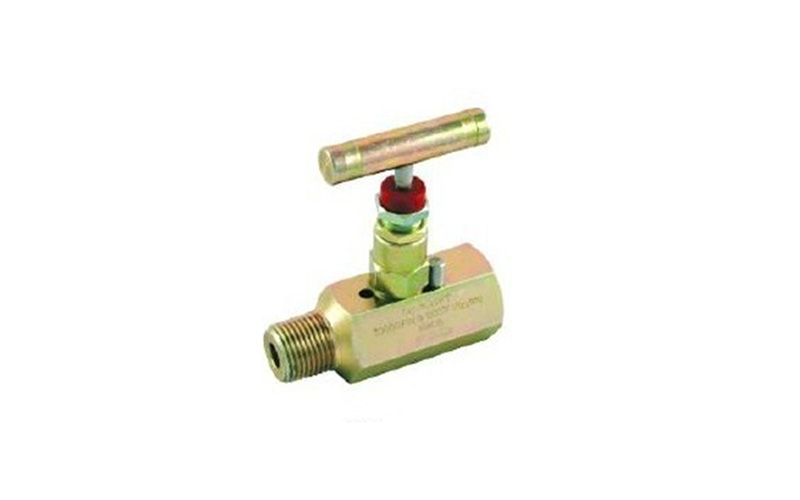

Brass Needle Valve 1000psi With Solenoid
Brass needle valve 1000psi with solenoid for diesel has double stage diaphragm pressure reducing structure, constant outlet pressure, suitable for purified gas, standard gas, corrosive gas etc.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Safety |
| Pressure: | High Pressure |
| Power: | Manual |
| Material: | Brass |
| Temperature of Media: | Medium Temperature |
| Media: | Gas |
| Port Size: | 1/4" |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | General |
| Product name: | Brass needle valve 1000psi with solenoid |
| Connection: | NPT |
| Medium: | Gas |
| Body material: | Brass |
| Size: | 1/4''--4'' |
| Standard: | NPT BSP |
| Model: | SLK-YDF131 |
Applications of Brass needle valve 1000psi with solenoid :
Laboratory, Gas Chromatograph, gas laser, gas manifold system, petroleum chemistry, and test equipment
Specifications of Brass needle valve 1000psi with solenoid:
Nominal pressure: 0-1000PSI
Working temperature: -20 to 150°C
Suitable medium: GAS
Thread: ISO07
Pressure testing: ISO5208

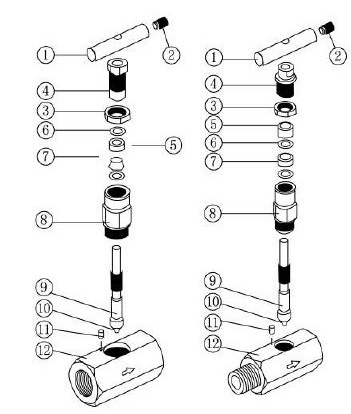

Component and material:
Body: brass
Spring: BRASS
Spring: PVC
Seal gasket: PVC
Piston: PVC or brass
Bonnet: PVC
Filter: brass
Size: 1/2 to 4 inches
