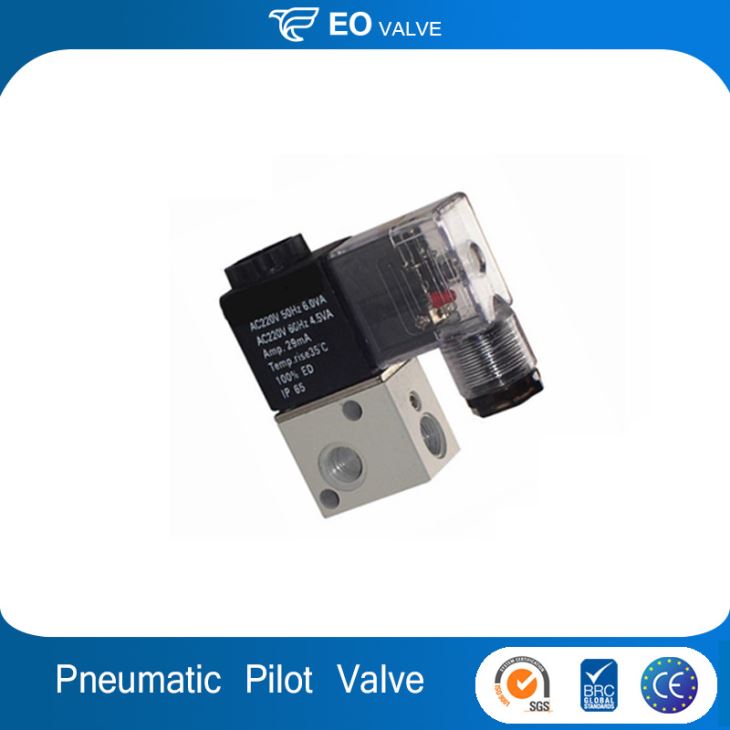

Pilot Alloy Material Pneumatic Solenoid Valve

Pilot Alloy Material Pneumatic Solenoid Valve

Pilot Alloy Material Pneumatic Solenoid Valve;Power:Solenoid,Material:Alloy, Alloy,Media:Gas,Model Number:3v1,Brand Name:EO,Name:pneumatic solenoid valves.

Send Inquiry

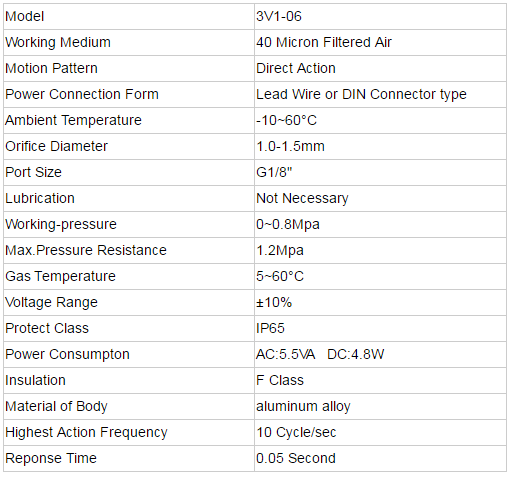

Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Solenoid
Material:Alloy, Alloy
Temperature of Media:Medium Temperature
Media:Gas
Port Size:1/8"
Place of Origin:China (Mainland)
Model Number:3v1
Brand Name:EO
Application:General
Name:pneumatic solenoid valves
Type:Normally Closed
Thread:BSPP BSPT NPT
Coil:Lead Wire or Connector
Sealing:NBR VITON
Port size:1/4"
Quality:Best
Voltage:AC220V AC110V DC12V DC24V
Price:low




The working principle of electromagnetic valve:

Solenoid valve has closed cavity, open a hole in different position, every hole leads to different tubing, cavity valve is among, both sides are two electromagnets,

which face the electromagnetic coil current body will be attracted to which side, by controlling the movement of the valve body or blocking leakage of different oil discharge hole

, and the oil hole is always open, hydraulic fluid will enter the different oil drain, and then through the oil pressure to push the cylinder piston, piston drives the piston rod, piston rod

drive mechanism.So that by controlling the electric current of the electromagnet to control the mechanical movement.




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
