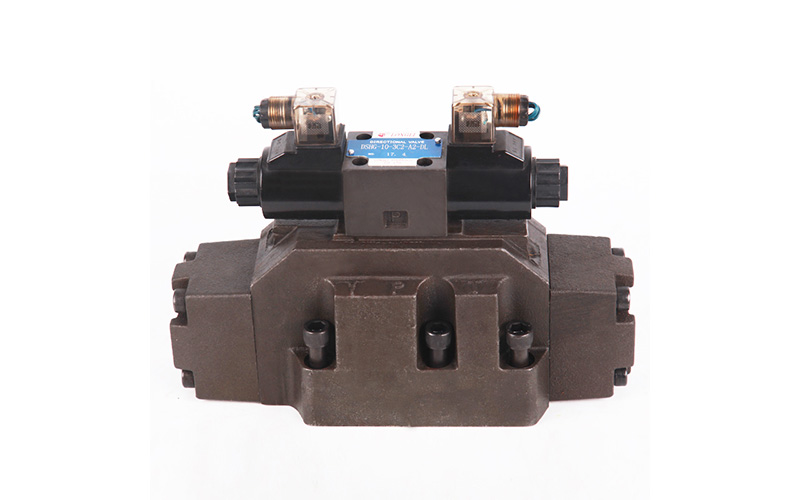

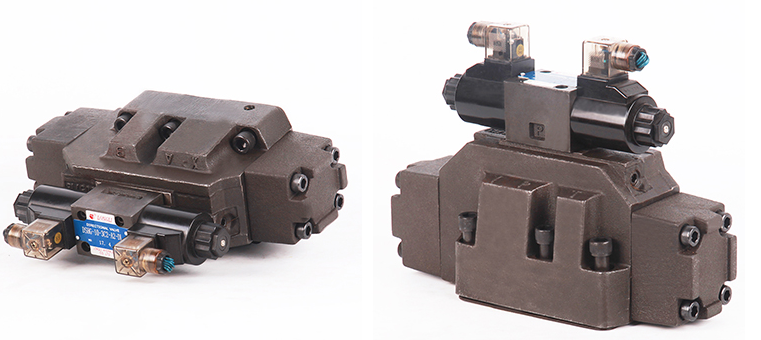

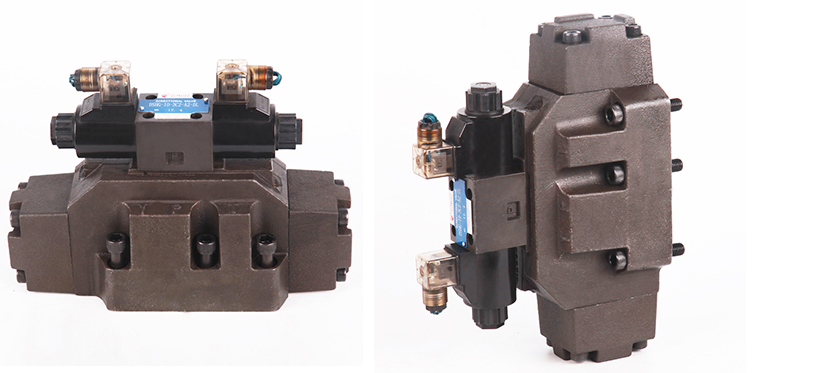

Yuken Type DSHG10 Solenoid Controlled Pilot Operated Directional Valves
Yuken type DSHG10 Solenoid Controlled Pilot Operated Directional Valves;Material:Casting,Port Size:Standard,Model Number:DSHG-10,Application:General.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | High Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Oil |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | DSHG-10 |
| Brand Name: | EO |
| Application: | General |
| Product name: | hydraulic solenoid directional control valve |
| Certificate: | ISO9001 |
| Max pressure: | 315bar |
| Max flow: | 1100lpm |
| Color: | Customer's Request |
| Body material: | Cast iron |
| Type: | Rexroth |
| Fluid: | Mineral oil Phospate ester |
| Temperaure range: | -30~+80 ℃ |
| Weight: | 45.3kg |
Features:
These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energised the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.

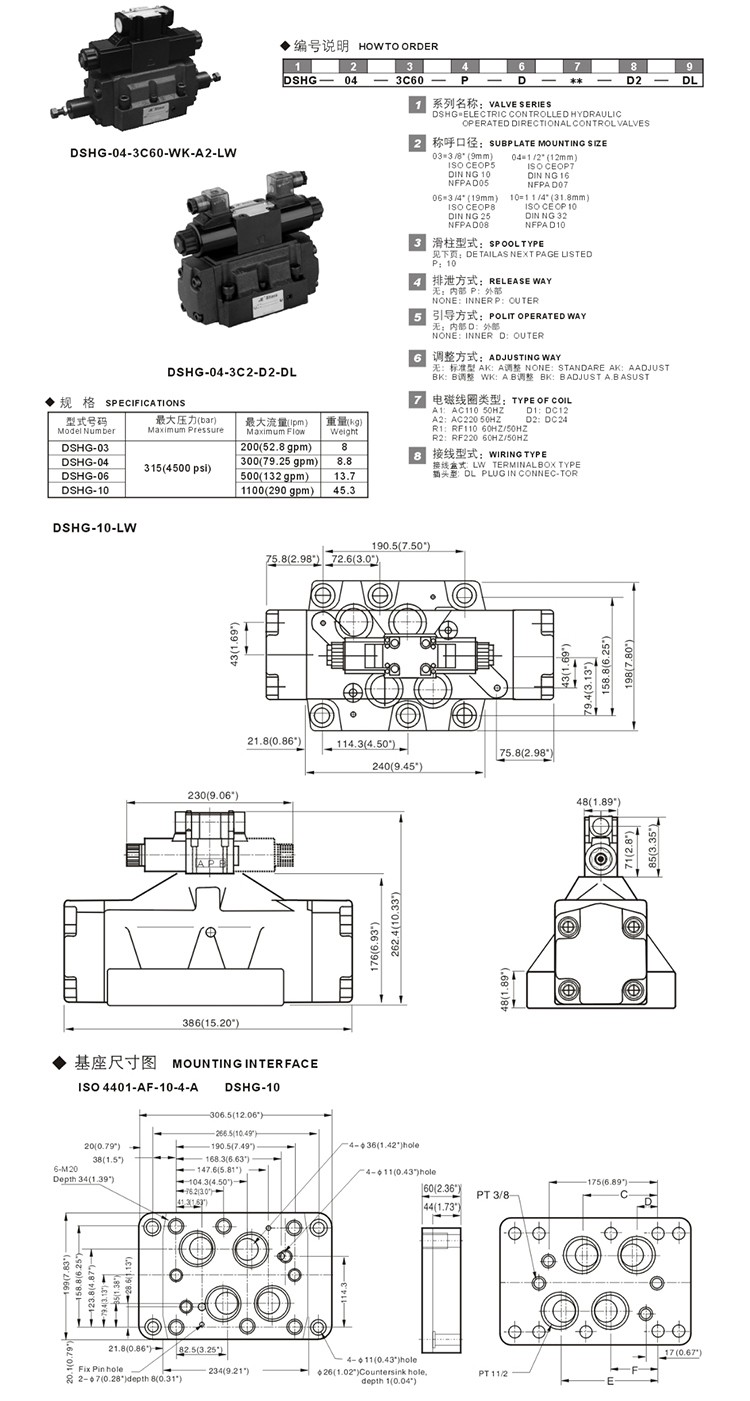

Technical Parameter:
Product name
Hydraulic directional control valve
Model
DSHG10
Place of Origin
China
Max. Flow
1100(290gpm)
Max.Pressure
315(4500psi)
Material
Casting
Medium
Oil
Power
Hydraulic
Color
Customer's request
Certificate
ISO9001
