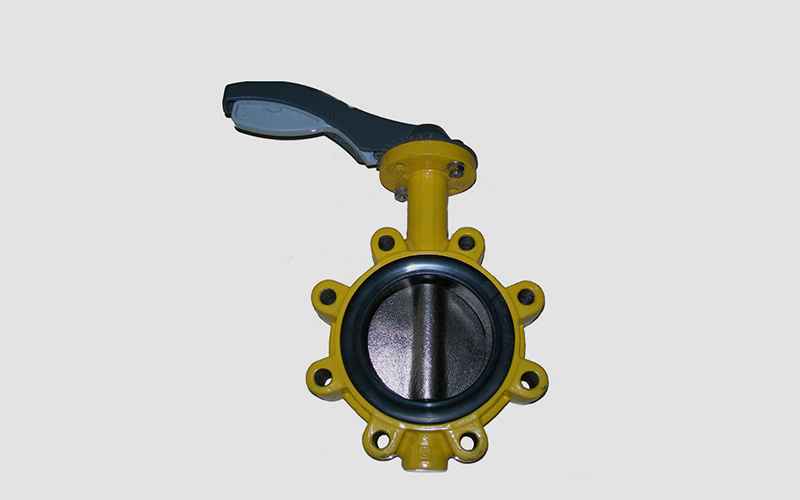

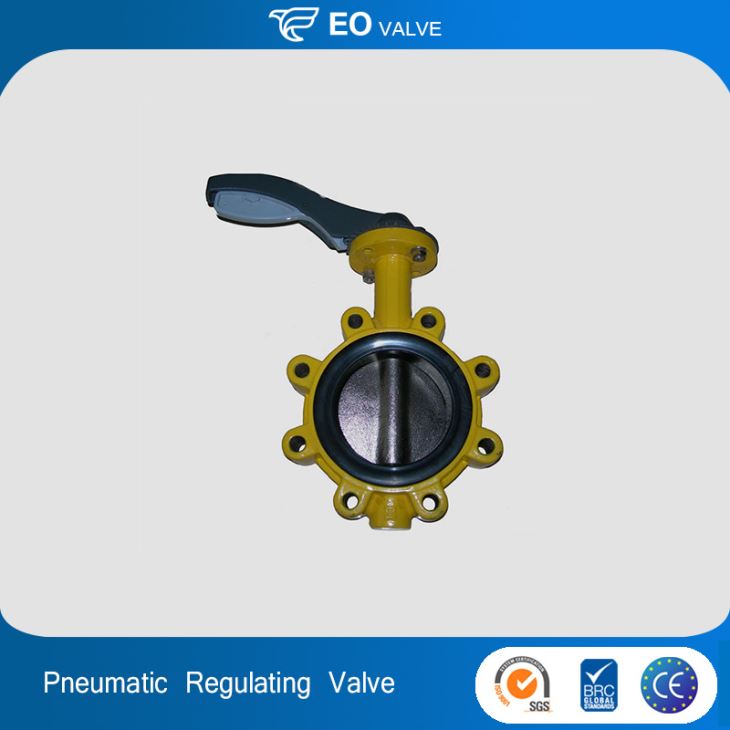

High Temperature Gas Regulation Cast Iron Pneumatic Lug Butterfly Valve
High Temperature Gas Regulation Cast Iron Pneumatic Lug Butterfly Valve;Material:Stainless Steel,Temperature of Media:Medium Temperature,Media:water gas oil,Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | lug type butterfly valve |
| Pressure: | Low Pressure |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | water gas oil |
| Port Size: | DN50-600mm |
| Place of Origin: | China (Mainland) |
| Model Number: | LTD71X-10/16 |
| Brand Name: | EO |
| Application: | General |
| Body material: | Stainless steel |
| Type: | lug type |
| Certificate: | ISO9001:2008 CE |
| Connection: | wafer |
| Standard: | ANSI BS DIN JIS |
| Color: | Customer's Request |
| Medium: | water gas oil |
| Working Pressure: | PN10 / PN16 |
| nominal diameter: | DN50-600mm |
Specification:
Size: 2”-24” / 50mm – 600 mm
Design standard: API 609, BS EN 593, MSS SP-67.
Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.
Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K.
Test: API 598.
Lever / worm gearbox operator / electric operator / pneumatic operator
