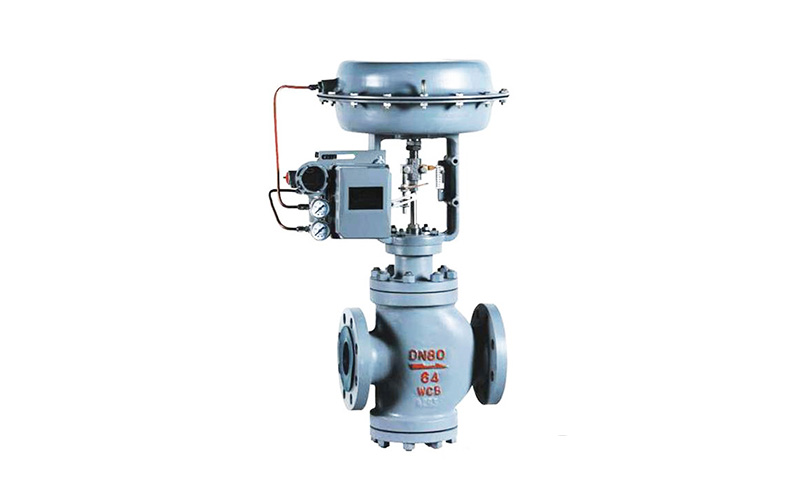

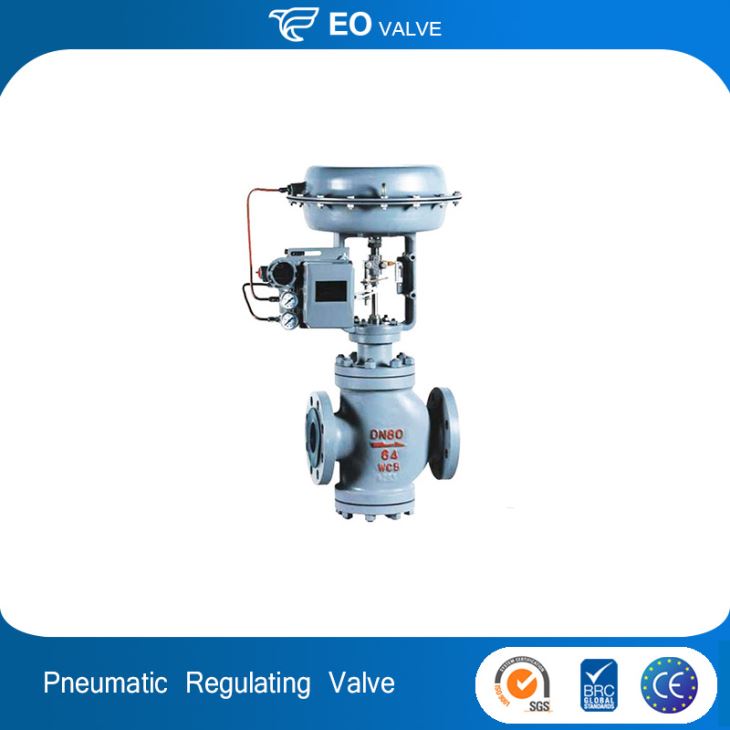

Pneumatic Self Regulating Water Pressure Control Valve

Pneumatic Self Regulating Water Pressure Control Valve

Pneumatic Self Regulating Water Pressure Control Valve;Pressure:Medium Pressure,Power:Pneumatic,Media:Water,Place of Origin:China (Mainland),Brand Name:EO,Application:General.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Pneumatic
Material:Casting
Temperature of Media:Normal Temperature
Media:Water
Port Size:3/4"-12" (DN20-300)
Place of Origin:China (Mainland)
Model Number:BZHP
Brand Name:EO
Application:General
Item:pneumatic self regulating water pressure control valve
Connection:Flange, Screw, Welded
Actuator:Spring return(Single action), Double Action
Action way:Air to open, Air to close
Air supply:140-400KPa
Spring Range:20-100MPa
Effectiv area:350-1400 cm2
Accessoires:Positioner, solenoid valve, air filter, etc
Standard:ANSI, DIN, BS, JIS, GB
Certificate:ISO, CE

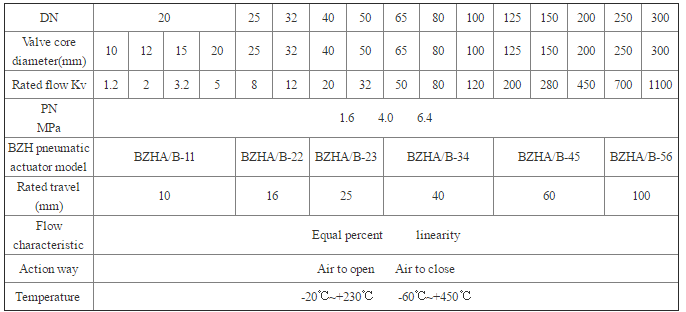

Parameters of Control Valve





Size:  3/4"-12" (DN20-300)


Body Material: Cast iron, Cast steel, Stainless steel


Pressure Grade: 1.6Mpa, 4.0Mpa, 6.4Mpa


Connection: Flange, Screw, Welded


Temperature Range: Normal temperature: -20--+230; Thermal slug type: -60--+450


Type: Single seated, Double seated, Sleeve, Cage Guided, Three Way, etc


Standard:  ANSI, DIN, BS, JIS, GB


Parameters of Pneumatic Actuator





Type: Diaphragm type


Effective Area: 350-140cm2


Spring Range:  20-100MPa


Air Supply:  140-400KPa


Ambient Temperature:  -30~+70℃
