Instrumentation Gauge Valve
Instrumentation Gauge Valve;Power:Manual,Material:Stainless Steel,Media:Gas, Oil, Water,Port Size:1/4"~1",Place of Origin:Taiwan.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Needle |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Gas, Oil, Water |
| Port Size: | 1/4"~1" |
| Place of Origin: | Taiwan |
| Model Number: | C-GRV-S6-S-04FN-T-D4 |
| Brand Name: | EO |
| Application: | Industry |
| Max. Working Pressure: | 6000psig |
| Thread Type: | NPT / BSPT |

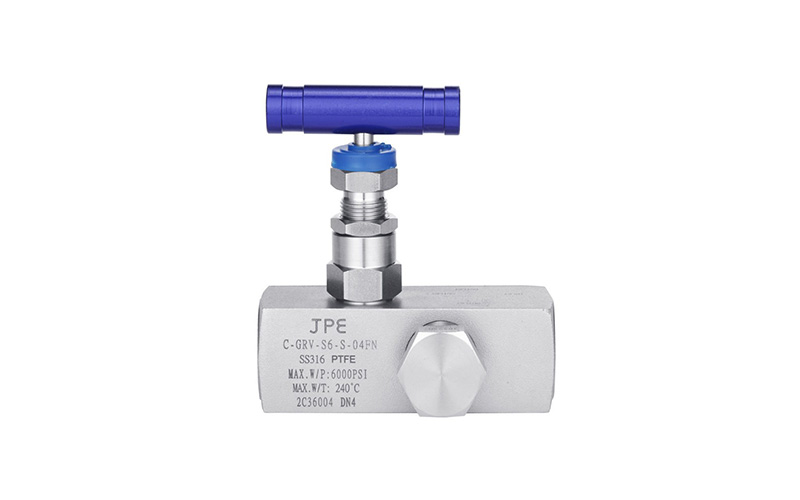

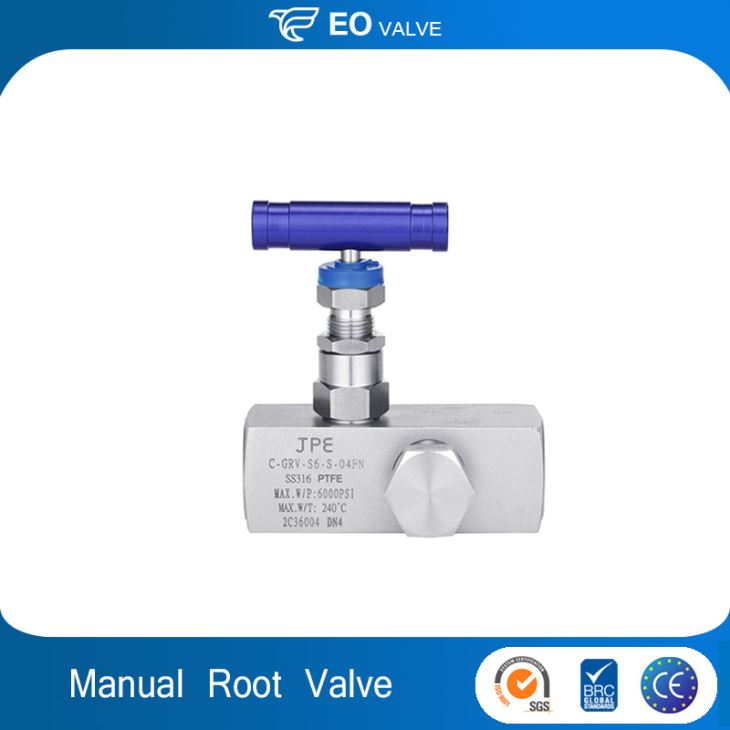

JPE Instrumentation Gauge Valve, SS316/304/304L/316L GRV-S Short Body Multi-Port Gauge Valve Female Thread from Taiwan
Features
Body material in Stainless Steel 316 or 304
Max.working pressure to 6000 psig (413 bar) at 37Celsius degree
TFM1600 packing as standard; Graphite packing for option
Lagging extension body available for insulation clearance
1/2" or 3/4" male NPT inlet port and 1/2" female NPT outlet port configuration
1/2"female NPT gauge port standard
100% factory tested
