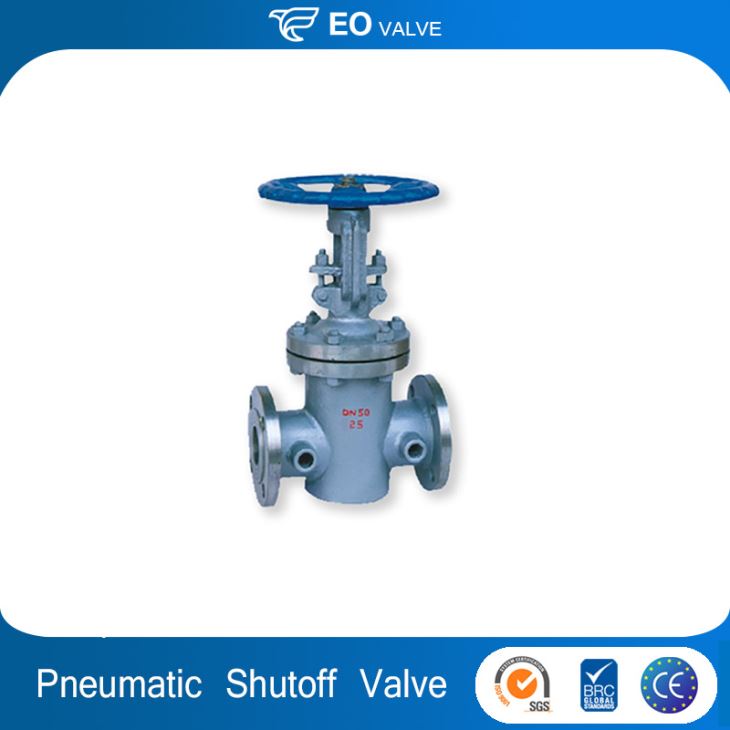

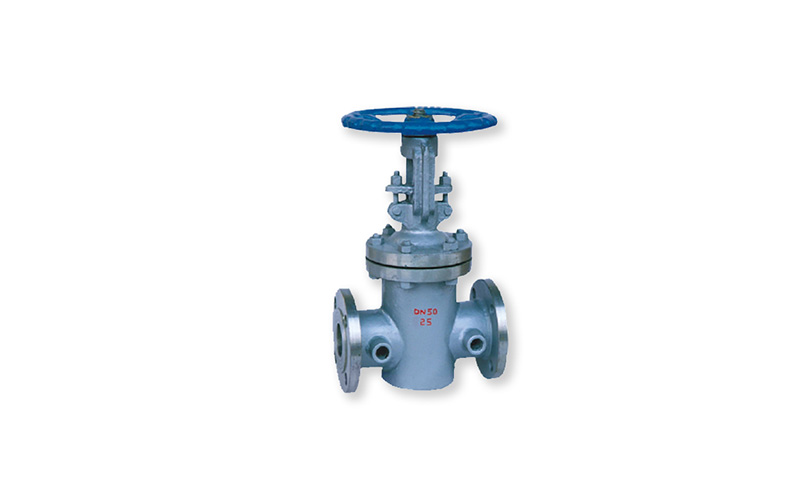

Workable Price Dn50 Pn25 Hand Wheel Operaton Jacket Gate Valve

Workable Price Dn50 Pn25 Hand Wheel Operaton Jacket Gate Valve

Gate Valve also known as sluice valve designed for opens by lifting a round or rectangular gate / wedge out of the patch of the fluid, the distinct feature of a gate valve is the sealing surface between the gate and seats, so gate valves are often used when a straight flow of fluid and minimum restriction is desired. the gate faces can form a wedge shape or be paralleled. gate valve are primarily used to permit or prevent the flow of liquids, but typical gate valves should not be used for regulating flow unless they are specifically designed.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Gate
Pressure:PN1-PN600, low pressure, middle pressure, high pressure
Power:Hydraulic, Manual, Pneumatic, Solenoid
Material:Carbon Steel, Stainless Steel, Brass, Al
Temperature of Media:Normal Temperature
Media:Oil, Water, Gas, Acid, Base
Port Size:DN16-DN2000
Place of Origin:China (Mainland)
Brand Name:EO
Application:General, Oil, Water, Gas, Acid, Base, home kitchen
International Standard:DIN,ASTM,GB,ISO,ANSI,AISI,JPI,JB
Driving mode:pneumatic,manual,hand wheel,handle,lever,chain,worm wheel
Joint Type:threaded, flange, welded, wafer, butt-joint, lug, tri-clamp, sleeve
Purpose & Usage:Cut-offer Valve, Shutoff Valve
Surface finish:Enamel
Distance of Run:Linear Motion, Angle Way
Machining Equipment:NC Lathing machine, NC Boring machine, Drilling machine
Inspection:hydro test, shell test, seal test



Product Description:

Gate Valve also known as sluice valve designed for opens by lifting a round or rectangular gate / wedge out of the patch of the fluid, the distinct feature of a gate valve is the sealing surface between the gate and seats, so gate valves are often used when a straight flow of fluid and minimum restriction is desired. the gate faces can form a wedge shape or be paralleled. gate valve are primarily used to permit or prevent the flow of liquids, but typical gate valves should not be used for regulating flow unless they are specifically designed.


Product Specifications:

A: Class 150~1500lb cast steel gate valve

(1). OS&Y, Rising stem, Flexible Wedge Gate Valve, Solid Wedge Gate Valve

(2). Bolted Bonnet, Threaded or welded seat ring, Renewable seat ring

(3). Material: ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,A351 CF3,A351 CF3M,A351 CN7M



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
