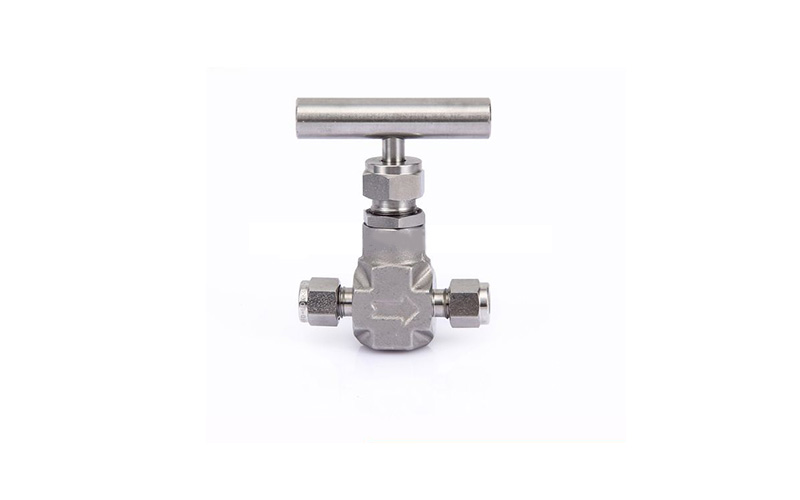

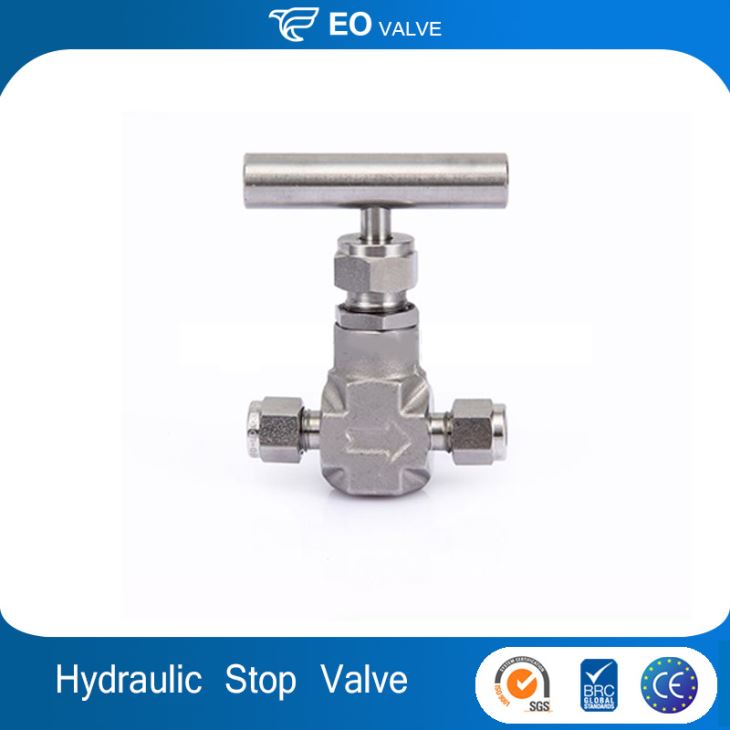

Cost-Effective High Pressure Hydraulic Stop Valve

Cost-Effective High Pressure Hydraulic Stop Valve

Cost-Effective High Pressure Hydraulic Stop Valve;Brand Name:EO,Feature:Very durable,Max.Pressure:10000PSI,Max.Temperature:490°C,Size:Various Size.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Needle
Pressure:High Pressure
Power:Manual
Material:Casting, stainless steel 316, 304
Temperature of Media:High Temperature
Media:Water,Oil,Gas
Port Size:Various
Place of Origin:China (Mainland)
Brand Name:EO
Quality:Prime,high quality
Feature:Very durable
Type:New
Max.Pressure:10000PSI
Max.Temperature:490°C
Min.Temperature:-54°C
Size:Various Size
Eco-friendly:Yes
Other:Resistant to corrosion




Feature:



1.Prime,High Quality

2.Standards:NPT,BSP,ISO,DIN

3.Material:ss304,316,316L

4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Details:



1.Pressure up to 6000 psig (414 bar) for standard series

  Pressure up to 10000 psig (689 bar) for high pressure series

2.Temperature from -65°F to 450°F ( -54°C to 232°C )

  with PTFE packing

  Temperature from -65°F to 1200°F ( -54°C to 649°C )

  with Grafoil packing

3.Safe union-bonnet constrution

4.Back seating design protects the packing in fully

  open position

5.Panel mountable

6.Packing below stem thread isolates the thread

  lubricants from the media

7Non-rotating stem tip

8.100% factory tested


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
