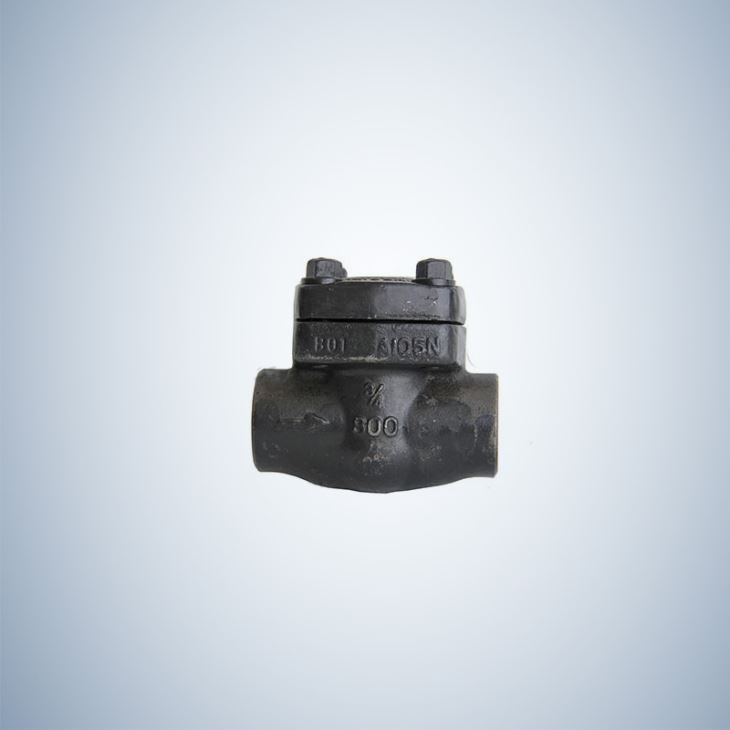

Forged Steel Swing Check Valve

Forged Steel Swing Check Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China forged-steel-swing-check-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel a105 swing check Valve socket weld ends,Manufactured By......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China forged-steel-swing-check-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel a105 swing check Valve socket weld ends,Manufactured By...


Shenyang EO Valve Co.,Ltd Forged Steel A105 Swing Check Valve Socket Weld Ends,Manufactured

Product Specifications :

STANDARDS:

1. DESIGN AND MANUFACTURE:

BS 5352/API 602

2. FACE TO FACE DIMENSIONS:

ASME B16.10 OR MANUFACTURER’S SPECIFICATION

3. FLANGE ENDS DIMENSIONS:

NPS1/2”-2”



ASME B16.5

4. BW ENDS DIMENSIONS:

ASME B16.25

5.SOCKET WELD ENDS DIMENSIONS:

ASME B16.11

6.THREADED ENDS DIMENSIONS:

ASME B1.20.1

7. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

8. NORMAL PRESSURE:

CLASS 150~1500

9. NORMAL DIAMETER:

NPS 1/2″~2″


DESIGN FEATURES:

Bolted Cover
Piston Lift Disc, Full Bore Design
Renewable Seat Rings / Integral Seat Rings.
Spring Loading Disc
Horizontal Service
Size: 2" - 24"
Pressure: 150LB - 2500LB
Connection: Flanges, RTJ Flange, Butt Weld


Main Material:
Carbon Steel, Forged Steel, Stainless Steel
GS-C25, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M,
WC6, WC9, C5, C12, C12A
Specifiable Material:
Duplex Steel, Super Duplex Steel, Inconel
GR4A, GR6A, CY-40, Inconel 600


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
