API 6D Designed Casting Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China api6d-designed-casting-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API6D DESIGNED CASTING TRUNNION BALL VALVE Conform to API 6D,......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China api6d-designed-casting-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API6D DESIGNED CASTING TRUNNION BALL VALVE Conform to API 6D,...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China api6d-designed-casting-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

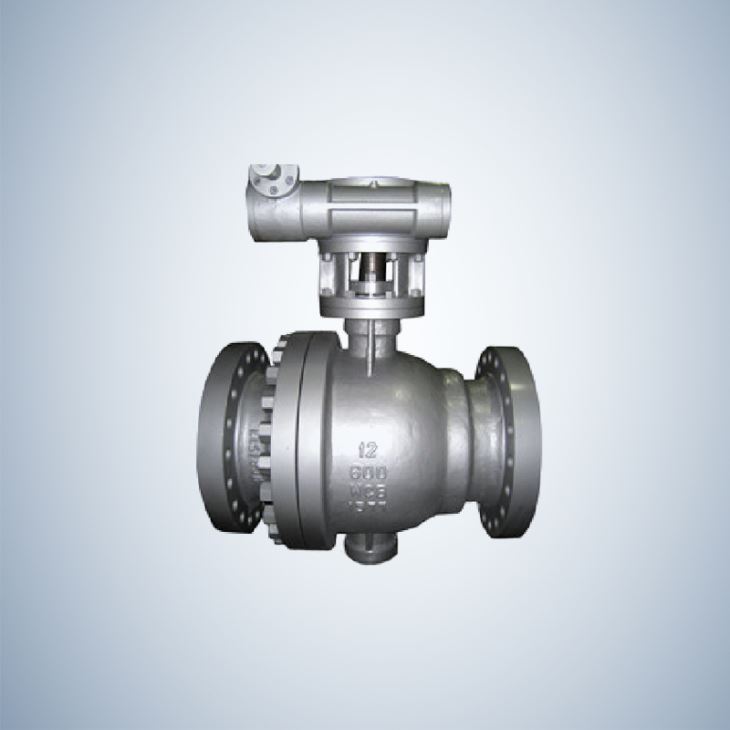

API6D DESIGNED CASTING TRUNNION BALL VALVE

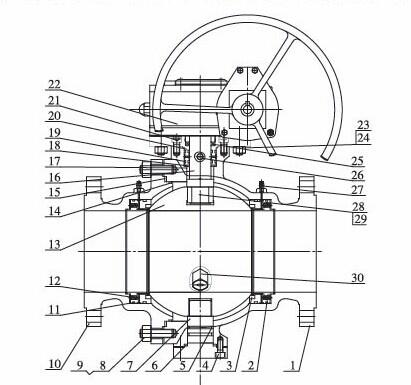

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | SCREW | A193 B7 |
5 | O-RING | VITON |
6 | GASKET | 304SS/316SS+GRAPGITE |
7 | TRUNNION | A105+ENP |
8 | BOLT | A193 B7 |
9 | NUT | A194 2H |
10 | BONNET | A216 WCB |
11 | O-RING | VITON |
12 | SPRINGS | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | O-ING | VITON |
15 | GASKET | 304SS/316SS+GRAPHITE |
16 | STEM | A1045+RPTFE |
17 | BEARING | A1045+RPTFE |
18 | THRUST WASHER | PTFE |
19 | O-RING | VITON |
20 | PACKING BOX | A105+ENP |
21 | SCREW | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | CARBON STEEL | CARBON STEEL |
25 | PACKING | GRAPHITE/PTFE |
26 | GERASE FITTING(STEM) | CARBON |
27 | GREASE TING(SEAT | CARBON |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | DRAIN VALVE AND PLUG | CARBON STEEL |
Product Specifications :
Conform to API 6D, BS5351, and ASME B16.34, They are tested according to API 598, and marked as per MSS SP-25.
1. Construction is as follows:
- Full Port or Reduce Port
- Split Body
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Double seat structure
- Butt Weld Ends to ASME B16.25
- Flange Ends to ASME B16.5
3. Normal Pressure Rating
PN10~PN420, CLASS150~2500
4. Normal Size Range
DN50~DN1000, 2"~40"
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
