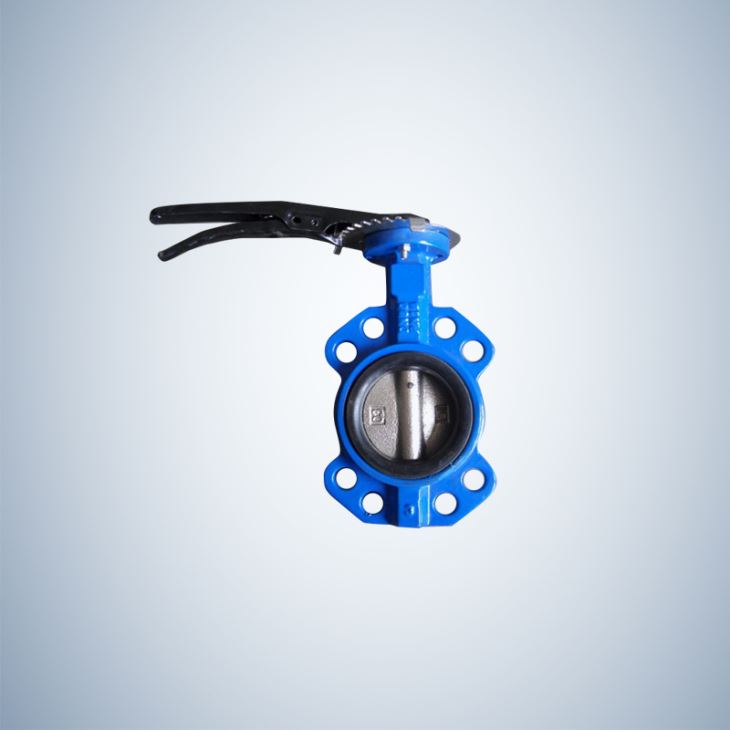

Wafer Full Lug Type Concentric Butterfly Valve
Products Details : is a leading China full lug type concentric butterfly valve, full port butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FULL LUG TYPE CONCENTRIC BUTTERFLY... Products D escription :...
Products Details :
is a leading China full lug type concentric butterfly valve, full port butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FULL LUG TYPE CONCENTRIC BUTTERFLY...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China full lug type concentric butterfly valve, full port butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Applications :
It is widely used in Stainless steel valves are widely used in petroleum, chemical industry, electric power, boiler,high temperature resistant,low temperature resistant,corrosion resistant.
FULL LUG TYPE CONCENTRIC BUTTERFLY VALVE
Product Specifications :
Main Parts and Materials
Parts name | Full lug type concentric butterfly valve |
Body | CI/DI/WCB/ALB/CF8/CF8M |
Disc | DI/ALB/Rubber lined Disc/ 1.2501/CF8M/1.4529/CF8/Monet |
Stem | 416/304/316/431/17-4PH |
Seat | NR/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Vi-ton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE |
Standards and Product Parameter
Face to face | Flange Connection | Top Flange |
BS5155short,ISO5752,DIN3202 F16 | DIN PN 10/16/25;ANSI B16.1,BS4504,ISO PN 10/16 | ISO5211 |
Test
Nominal Diameter | Nominal Pressure | Test Pressure | |
Shell test | Seal test | ||
DN40-DN600 | 1.0~1.6, (150/200PSI) | 1.5~2.4 | 1.1~1.76 |
DN700-DN1200 | 1.0MPa (150PSI) | 1.5 | 1.1 |
Product Advantages
1)Small in size and light in weight .It can be mounted wherever needed.
2)Simple, compact structure, quick 90 degree on-off operation.
3)Disc has two-way bearing, perfect seal, without leakage under the pressure test.
4)Flow curve tending to straight-line. Excellent regulation performance.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
6.FAQ
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. Which industries will be applied to your valves?
The oil & gas, coal mine, water conservancy, drilling, power station project, metallurgy and chemical industries etc.
