High Performance Double Offset Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China high performance double offset butterfly valve, high performance butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HIGH PERFORMANCE FLANGE......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China high performance double offset butterfly valve, high performance butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HIGH PERFORMANCE FLANGE...

Products Description :

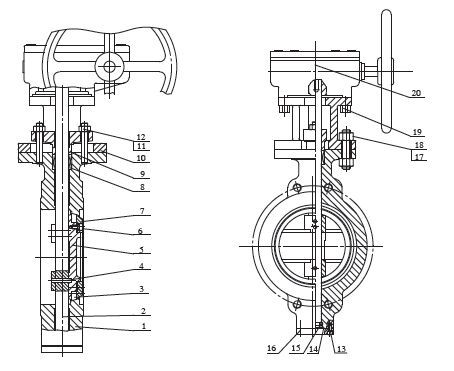

WORM GEAR DOUBLE OFFSET BUTTERFLY VALVE


ITEM	PART NAME	MATERIAL
1	BODY	A216 WCB
2	STEM	A182 F6
3	SEAT	PTFE/RUBBER
4	PIN	A276 410
5	DISC	A216 WCB
6	SCREW	CARBON STEEL
7	SEAT GLAND	CARBON STEEL
8	PACKING	GRAPHITE/PTFE
9	GLAND FLANGE	A216 WCB
10	YOKE	A216 WCB
11	GLAND NUT	A194 2H
12	EYEBOLT	A193 B7
13	COVER BOLT	A193 B7
14	GASKET	SS304/SS316+GRAPHITE
15	SPLINT COLLAR	CARBON STEEL
16	COVER	A216 WCB
17	YOKE BOLT	A193 B7
18	YOKE NUT	A194 2H
19	BOLT	CARBON STEEL
20	GEAR	ASSEMBLY

Product Specifications :

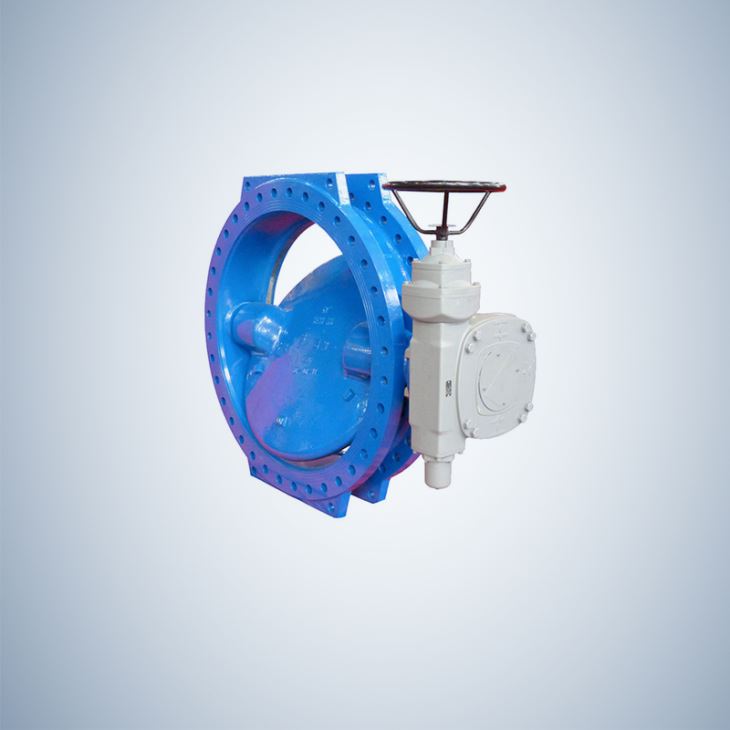

HIGH PERFORMANCE FLANGE HANDWHEEL DOUBLE OFFSET BUTTERFLY VALVE

FEATURE :

1. reasonable in design ,compact in construction, easy to install and maintain.

2. the double eccentric structure of the seal ring ,providing the valve with a long service life.

3. bubble-tight sealing with no leakage under testing pressure.

4.replacing material of the disc sealing ring and disc,the valve can be used for various medium and temperature.

we have specialized in export of butterfly valves for many years. Our products have found a ready market in many countries including the U.S.A, German, France, Italy, India, Japan, England etc and our items have enjoyed great reputation by the customers in these countries.

DOUBLE OFFSET BUTTERFLY VALVE SIZES :

Connection dimension
Class 150						Class 300
Size	Length	D	D1	D2	Z-d	Length	D	D1	D2	Z-d
Inch	mm
2”	108	152	120.5	92	4-19	108	165	127	92	8-19
3”	114	190	152.5	1278	4-19	114	210	168	127	8-22
4”	127	229	190.5	157	8-19	127	254	200	157	8-22
5”	140	254	216	186	8-22	140	279	235	186	8-22
6”	140	279	241.5	216	8-22	140	318	270	216	12-22
8”	150	343	298.5	270	8-22	150	381	330	270	12-26
10”	160	406	362	324	12-25	160	445	387	324	16-29
12”	178	483	432	381	12-25	178	521	451	381	16-32
14”	190	533	476	413	12-29	190	584	514	413	20-32
16”	216	597	540	470	16-29	216	648	571	470	20-35
18”	222	635	578	533	16-32	222	711	628	533	24-35
20”	229	699	635	584	20-32	229	775	688	584	24-35
24”	267	813	750	692	20-35	267	914	813	692	24-41
30”	292	887.5	846	813	44-22.4	292	990.5	921	845	36-38
32”	318	941.5	900	864	48-22.4	318	1054	978	902	32-41
36”	330	1057	1010	972	44-25.4	330	1172	1089	1010	32-45
≥36”,please inquiry.
