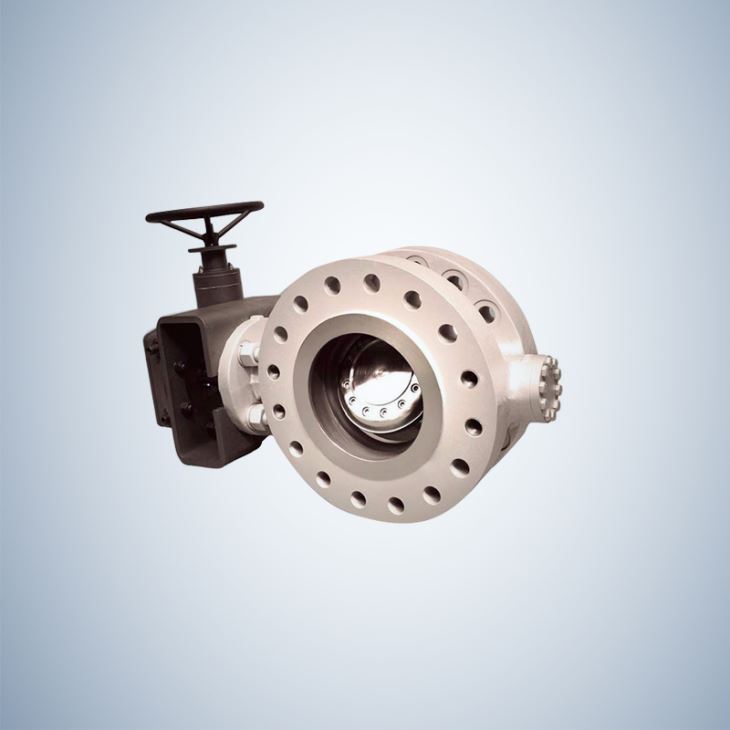

Multi-Lever Hard Sealing Triple Offset Butterfly Valve

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China multi-lever hard sealing triple offset butterfly valve, butterfly valve dn200 manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. MULTI LEVER HARD SEALING...

Products Description :

Shenyang EO Valve Co.,Ltd is a leading China multi-lever hard sealing triple offset butterfly valve, butterfly valve dn200 manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

MULTI LEVER HARD SEALING TRIPLE OFFSET BUTTERFLY VALVE

MULTI LEVER HARD SEALIN

APPLICATION :

1. Water Treatment Plant

2. Breweries

3. Drilling Rigs

4. Heating & Air Conditioning

5. Paper Industry

6. Chemical Industry

7. Gas Plant

8. Pneumatic Conveyors

9. Sugar Industry

10. Waste Effluent Treatment Plant

11. Cooling Water Circulation

12. Compressed Air

Product Specifications :

Standard: API1609.

Connection size: flange, wafer, lug.

Suitable medium: water, oil and air etc.

Suitable temperature: -20~425°c

Size: DN100--DN1500

Class: 150lb, 300lb

STANDARD  :

1. DESIGN AND MANUFACTURE: API 190/MSS SP-67/MSS SP-68

2. FACE TO FACE DIMENSIONS:  API 609/BS 5155

3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”/NPS 26”~36”): ASME B16.5/AMSE B16.47

4. BW ENDS DIMENSIONS: ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34

6. PRESSURE: CLASS 150~CLASS600

7. SIZE: NPS 2″~36″

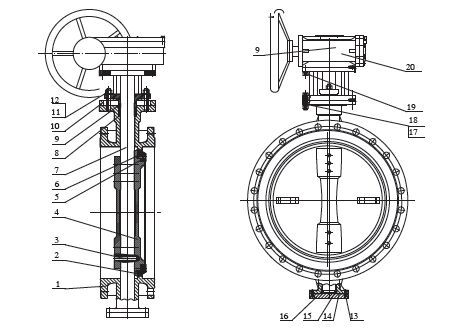

MATERIAL LIST

PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
