4 Inch Cast Steel Floating Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 4-inch--cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 4 INCH 2 PIECE CAST STEEL FLOATING BALL VALVE Ball valves are best......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 4-inch--cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 4 INCH 2 PIECE CAST STEEL FLOATING BALL VALVE Ball valves are best...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 4-inch--cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

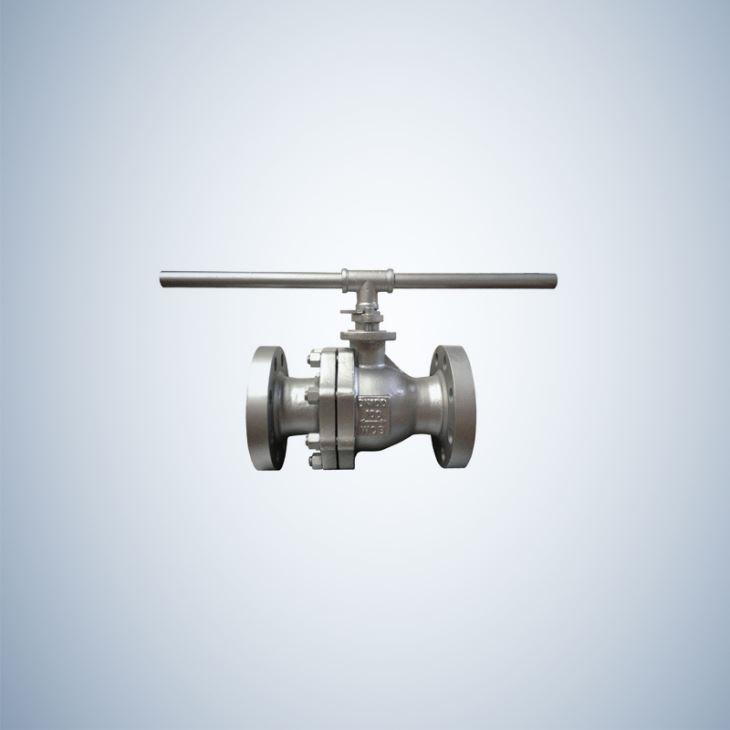

4 INCH 2 PIECE CAST STEEL FLOATING BALL VALVE
Ball valves are best used for fast-acting stop/start applications. They are considered quick-acting because they only require a 90° turn of the handle to operate the valve. The quarter turn minimizes valve operation time and decreases the possibility of leakage due to wear. Ball valves are available in a floating ball design and trunnion mounted design. They are widely used in petroleum refining, long-distance pipelines, chemical, paper making , water conservation, electric power, steel industry and other industries.

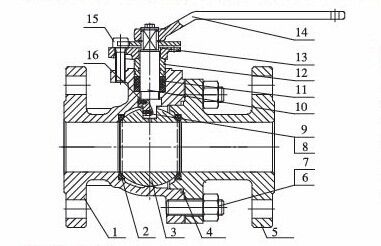

MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
Product Specifications :
DESIGN STANDARDS
ASME Standards :
B1.20.1Pipe Threads, General Purpose(Inch)
B16.10Face-to-Face and End-to-End Dimensions of Valves
B16.25Buttwelding Ends
B16.11Forged Fittings, Socket-Welding and Threaded
B16.5Flanged Fittings and Pipe Flanges
B16.47Large Diameter Steel Flanges
API Standards:
6DSpecifications for Pipeline valves
598Valve Inspection and Testing
607Fire test for soft-seated quarter-turn valves
6FA Specification for Fire Test for Valves
DESIGN FEATURES :
1. FULL PORT DESIGN/REDUCED PORT DESIGN
2. 2 PIECE BOLTED BODY
3. FLOATING BALL TYPE
4. BLOW-OUT PROOF STEM
5. FIRE SAFE DESIGN
6. ANTI-STATIC DEVICE
7. ISO 5211 DIRECT MOUNTING TYPE
8. WITH LOCKING DEVICE
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
