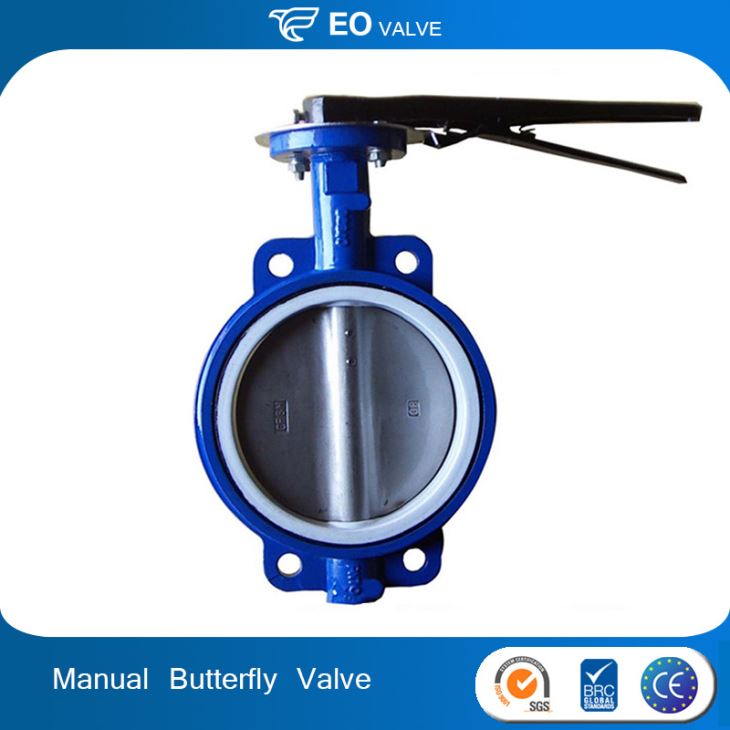

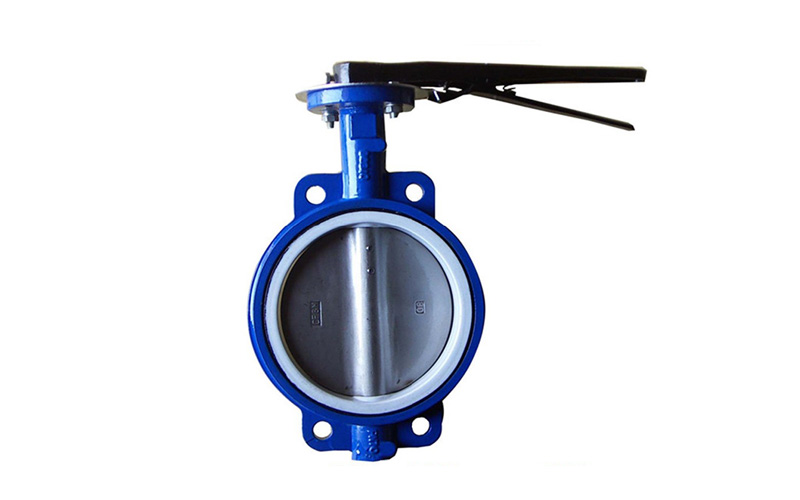

Ductile Iron 4 Inch Manual Wafer Butterfly Valve For Cement
Cast iron; Ductile iron; Alloy steel; Al alloy; Copper alloy; Stainless steel; Cast steel.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Low Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN40-DN350 |
| Place of Origin: | China (Mainland) |
| Model Number: | Butterfly Valve |
| Brand Name: | EO |
| Application: | General |
| Item name: | Ductile Iron 4 Inch Manual Wafer Butterfly Valve For Cement |
| Body material: | CI, CS, DI, SS, Al Alloy, Copper Alloy |
| Disc: | CI, CS, DI, SS, Al Alloy, Copper Alloy |
| Seat: | EPDM PDFE NBR |
| Certificate: | ISO CE SGS BV |
| Color: | Customer's Request |
| Medium: | Water Oil Gas Acid Base Desulfurization etc. |
| Face to face: | ISO5752 ASME B16.10 |
| Design standard: | API609 GB/T12238 |
| Inspection and test: | API598 GB/T 13927 |
| Main parts material | |
| Part name | Material |
| Body | Cast iron; Ductile iron; Alloy steel; Al alloy; Copper alloy; Stainless steel; Cast steel |
| Disc | Cast iron; Ductile iron; Alloy steel; Al alloy; Copper alloy; Stainless steel; Cast steel |
| Seat | NBR(-23℃~93℃);EPDM(-46℃~135℃); PTFE(-20℃~180℃) |
| Stem | Stainless steel; Cast steel |
| Driving method | lever handle |
| Technical parameters | ||||
| DN (mm) | 50~500 | 600~1000 | 1200~1600 | ≥1800 |
| PN (MPa) | 1.6 | 1.0 | 0.6 | 0.26 |
| Strength test (MPa) | 2.2 | 1.5 | 0.9 | 0.5 |
| Seal test (MPa) | 1.7 | 1.1 | 0.7 | 0.35 |
| Medium temperature | General -30℃~+150℃,Special +250℃ | |||
| Applicable medium | Water Oil Gas Acid Base Desulfurization etc. | |||
| Flange standard | GB2555-81 GB/T 17241.6 | |||
| Face to face | ISO5752 ASME B16.10 | |||
| Design standard | API609 GB/T12238 | |||
| Inspection and test | API598 GB/T 13927 | |||
| Pressure test standard | GB4981-85 | |||
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
