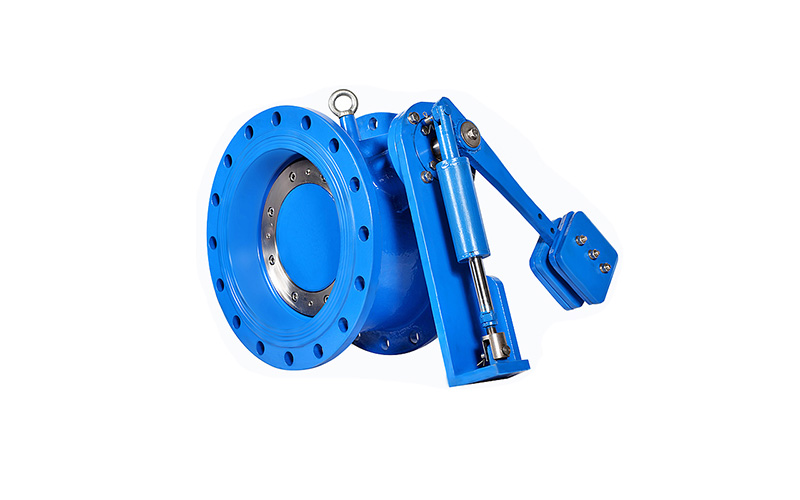

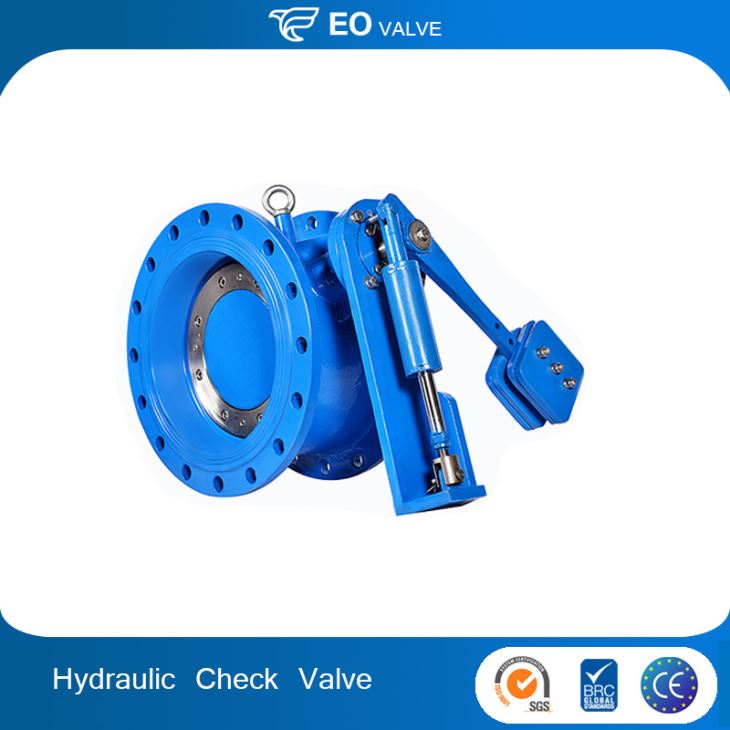

DIN 3202 Flange Type Non Slam Check Valve With Hydraulic Damper
DIN 3202 Flange Type Non Slam Check Valve with Hydraulic Damper;Standard or Nonstandard:Standard.Structure:Check.Power:Hydraulic.Temperature of Media:Normal Temperature.Place of Origin:China (Mainland).
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Check |
| Pressure: | Low Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Water, Sewage |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | OEM |
| Brand Name: | CMD |
| Application: | Water, Sewage |
| SPECIFICATIONS FOR HYDRAULIC CHECK VALVES | |
| Pressure rating and size: | PN10, PN16 |
| DN200 to DN2000 | |
| 8"~80" | |
| Material: | Body : GGG40, GGG50 |
| Disc : GGG40, GGG50, SS304, SS316 | |
| Stem : 1Cr13, SS304, SS316 | |
| Seal : NBR, EPDM | |
| Body Seat : F6a, SS304, SS316 | |
| Operated type | Hydraulic |
| Structure: | Tilting disc, with lever and counter, hammer |
| Flange connection: | EN1092 PN10, PN16 |
| Medium: | Water, sewage |
| Temperature: | 10 to 80°C |
