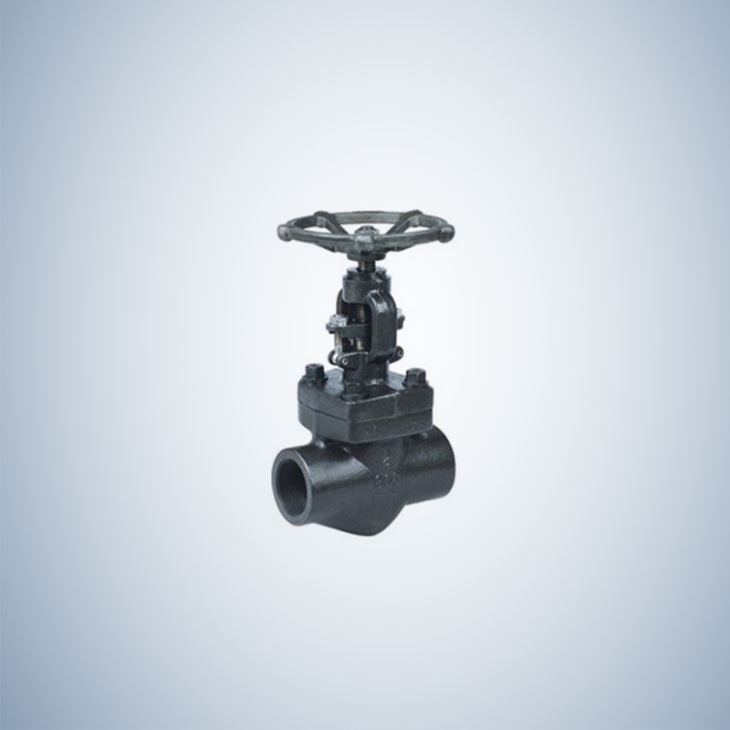

900Lb Forged Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 900lb forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 900lb forged gate...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 900lb forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 900lb forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service
API Standard 2 Inch Class 900lbBolted Bonnet Forged Steel Gate Valve Threaded Ends.
Product Specifications :
Design Standard:
DESIGN AND MANUFACTURE: | API 602(BS 5352) |
FACE TO FACE END: | ASME B16.10 OR MANUFACTURER'S SPECIFICATION |
FLANGE ENDS DIMENSIONS: | ASME B16.5 |
BW ENDS DIMENSIONS: | ASME B16.25 |
SOCKET WELD ENDS DIMENSIONS: | ASME B16.11 |
THREADED ENDS DIMENSIONS: | ASME B1.20.1 |
PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
NORMAL PRESSURE | CLASS 150-1500 |
NORMAL DLAMETER | NPS1/2"~2" |
Design Feature:
1. B.B-BOLTED BONNET OR WELDED BONNET
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS
6. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
Material Specifications:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A105 | A350 LF2 | A182 F316 |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A105 | A350 LF2 | A182 F316 |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING | ||
6 | BONNET | A105 | A350 LF2 | A182 F316 |
7 | BOLT | A193 B7/B7M | A320 L7/ L7M | A193 B8M |
8 | STEM PACKING | GRAPHITE / PTF | ||
9 | GLAND | 276 410 | 276 410 | A276 316 |
10 | GLAND FLANGE | A105 | A350 LF2 | A182 F316 |
11 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
12 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
13 | STEM NUT | A276 420 /Cu-ALLOY | ||
14* | HANDWHEEL | STEEL/ DUCTILE IRON | ||
ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
