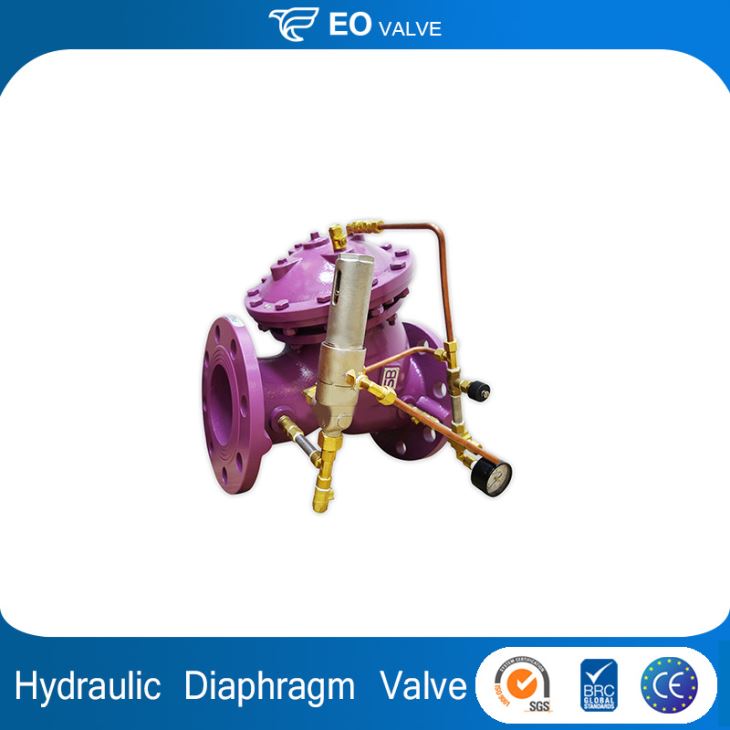

Hydraulic Pressure Sustaining Type Diaphragm Control Valve

Hydraulic Pressure Sustaining Type Diaphragm Control Valve

41-03 can be used as sustaining valve by installing it between upstream high pressure water supply and downstream big flow rate demand. It can maintain upstream supply pressure to avoid over flow rate problem which will lead upstream supply pressure loss.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Diaphragm
Pressure:High Pressure
Power:Pneumatic
Material:DUCTILE IRON, STAINLESS STEEL 304/ 316
Temperature of Media:High Temperature
Media:Water
Port Size:2" - 16"
Place of Origin:Taiwan
Model Number:41-03S
Brand Name:EO
Application:General
Connection End:NPT and BSPT Screwed End, PN/ JIS/ ANSI Flanged End
Working Temperature:0 ~ 100°C
VALVE BODY:DUCTILE IRON, STAINLESS STEEL 304/ 316
ACCESSORY:BRASS, STAINLESS STEEL 304/ 316
DIAPHRAGM:NBR, EPDM
FASTENER & SPRING:CARBON STEEL, STAINLESS STEEL
STEM:STAINLESS STEEL
Product type:Pressure Relief Valve

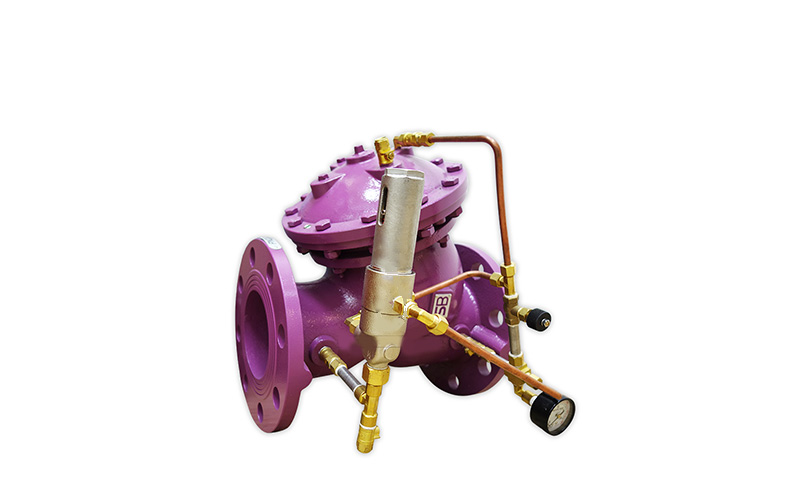

41-03 Hydraulic Control Valve – Pressure Relief Valve

Model 41-03 Hydraulic and Automatic Control Valve - Pressure Relief, Sustaining, BackPressure Valve can maintain upstream pipe pressure. It is applied for pressure relief, sustaining, and back impact problems. During operation, through pilot to sense the valve inlet pressure and control the open/close of the valve. When the input pressure is over the preset value, valve will quickly open and maintain the pressure in the pipe. After pressure relief, the valve will close slowly to prevent impact happening.

If a check feature is added, and a pressure reversal occurs, the downstream pressure is admitted in the main valve cover chamber closing the valve to prevent return flow.

The function of 41-03 Hydraulic Control Valve –Pressure Relief Valve

1. Sensitive and accurate pressure control function

2. Quickly open valve and ensure pipe pressure

3. Slow shut-off design and impact prevention

4. Completely automatic operation

5. Installation Direction – Vertical or Horizontal Direction



Sustaining Valve

41-03 can be used as sustaining valve by installing it between upstream high pressure water supply and downstream big flow rate demand. It can maintain upstream supply pressure to avoid over flow rate problem which will lead upstream supply pressure loss.
