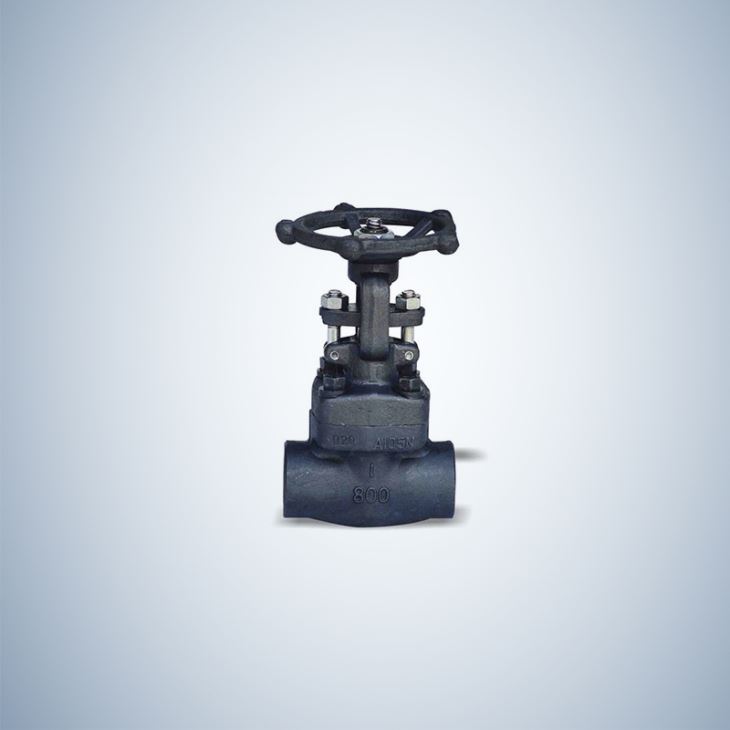

Hand Operated forged Gate Valve

Hand Operated forged Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China hand operate forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China hand...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China hand operate forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd  is a leading China hand operate forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

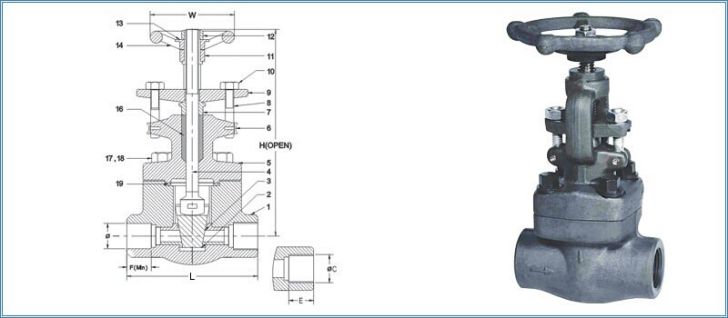

API 602 SW Forged Steel Gate Valve.

Product Specifications :

Standard:

·Design : API 602

·Face to face : ASME B 16.10

·End Flange :  ASME B 16.5

·Butt welding ends : ASME B 16.25

·Socket Welding ends :ASME B 16.11

·Screw ends : ASME B 16.20.1

·Inspection and test :  API 6D , API 598.


Design feature:

1. Bolted Bonnet or Welded Bonnet

2. WEDGE TYPE: Optional Flexible&solid wedge

3. BACK SEAT DESIGN

4. STEM IS INTEGRALLY FORGED AND CONNECTED WITH WEDGE BY T-JOINT

5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS

6. OUTSIDE SCREW AND YOKE (OS&Y)



Main Parts Material:

Part mane

Material

Part mane

Material

Body

Brass,A105,F51, A182 F11, F304,F316,F51,A105 ,A350 -LF2.

Packing

Graphite/PTFE

Stem

F51,410,420,304, 304L, 316, 316L

Stuffing cover

Brass,A105,F51, A182 F11, F304,F316,F51,A105 ,A350 -LF2.

Disc

A105,CF8, CF8M CF8C, CF3, CF3M,F51

Yoke

WCB, Stainless steel

Seat suface

Stellite,Cr

Worm device

 Gear box ,Bevel gear ,Hand wheel


Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
