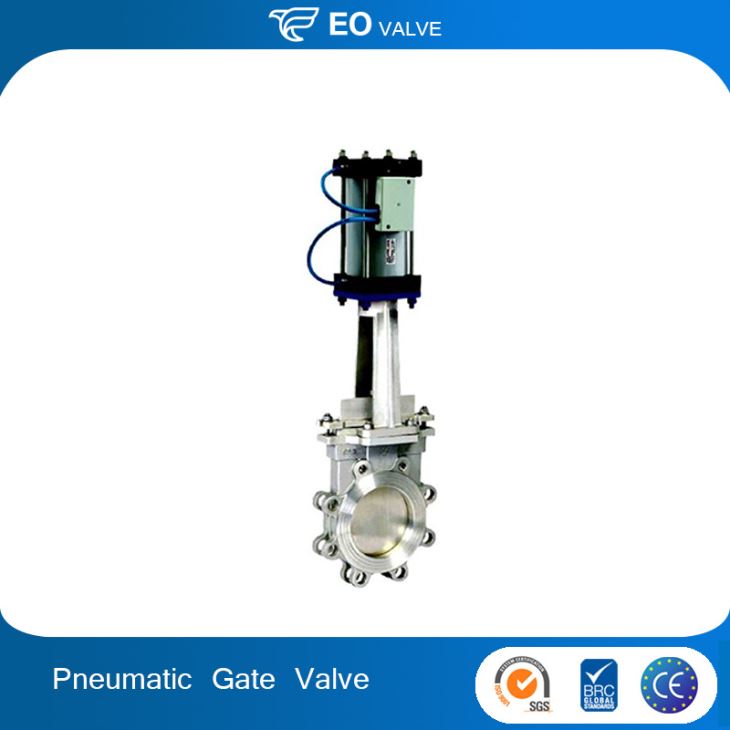

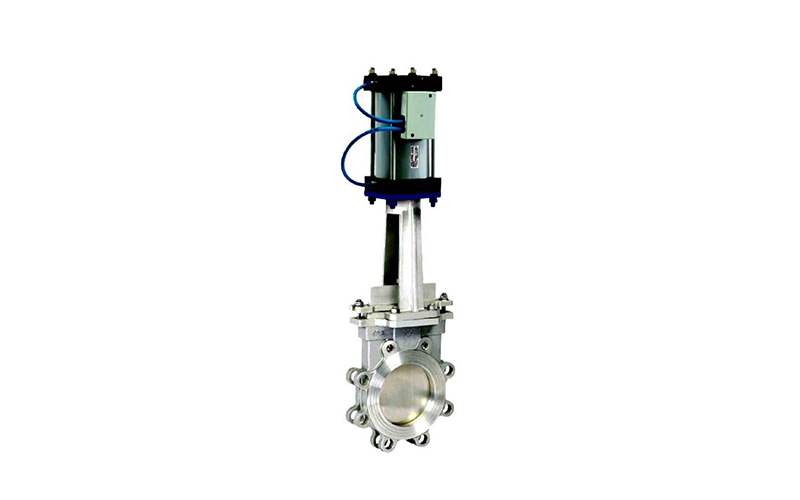

Soft Seal Slide Pneumatic Gate Valve
Soft Seal Slide Pneumatic Gate Valve;Structure:Gate,Pressure:Medium Pressure,Port Size:DN50-600,Place of Origin:China (Mainland),Brand Name:EO,Valve body type:Pneumatic Gate Valve.

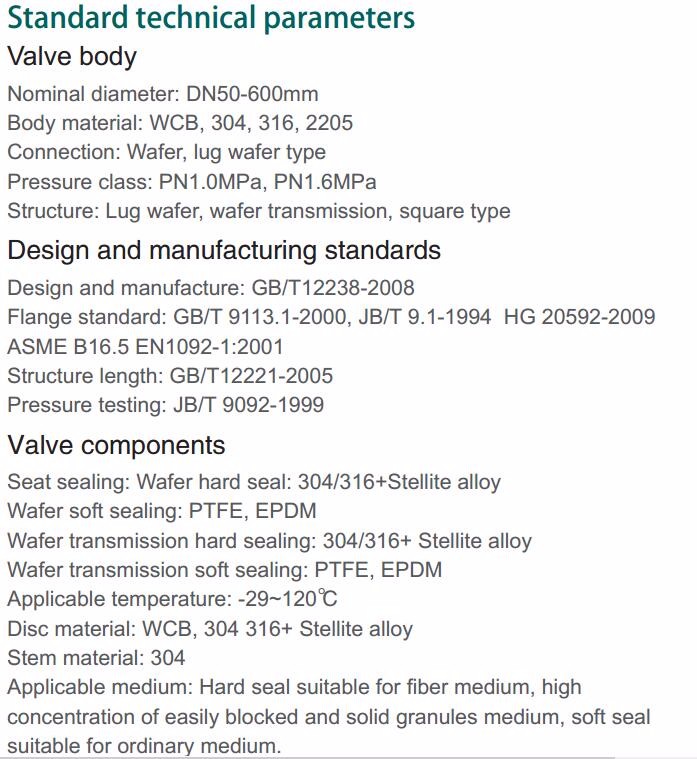

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Gate |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | WCB,304,316,2205 |
| Temperature of Media: | Normal Temperature |
| Media: | fiber, high concentration, solid granules |
| Port Size: | DN50-600 |
| Place of Origin: | China (Mainland) |
| Model Number: | Pneumatic Gate Valve |
| Brand Name: | EO |
| Application: | General |
| Valve body type: | Pneumatic Gate Valve |
| Connection: | Wafer,lug wafer type |
| Pressure class: | PN1.0Mpa,PN1.6Mpa |
| Body structure: | Lug wafer, wafer transmission, square type |
| Seat sealing: | 304,316,stellite alloy, PTFE, EPDM |
| Disc material: | WCB,304,316+stellite alloy |
| Stem material: | 304 |
| Applicable temperature: | -29~120℃ |
| Wafer soft seal: | PTFE, EPDM |
| Wafer hard seal: | 304,316+stellite alloy |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
Hot Tags: soft seal slide pneumatic gate valve, China, manufacturers, suppliers, factory, company, price, customized, buy, cheap, in stock
