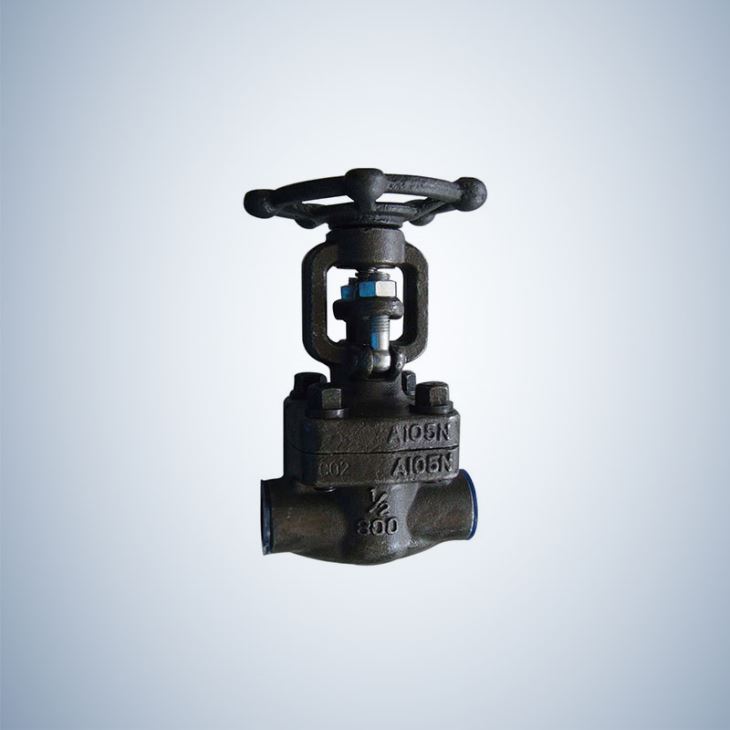

Forged Steel Gate Valve Hand Opearte
Products Details : Shenyang EO Valve Co.,Ltd leading China forged steel gate valve hand opearte manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China forged...
Products Details :
Shenyang EO Valve Co.,Ltd leading China forged steel gate valve hand opearte manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China forged steel gate valve hand opearte manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
API 602 Hand Operate Manual Operation Forged Steel Gate Valve.
Product Specifications :
Design Standard:
DESIGN AND MANUFACTURE | API 602(BS 5352) |
DESIGN AND MANUFACTURE | ASME B16.10 OR MANUFACTURER'S SPECIFICATION |
FLANGE ENDS DIMENSIONS | ASME B16.5 |
BW ENDS DIMENSIONS | ASME B16.25 |
SOCKET WELD ENDS DIMENSIONS | ASME B16.11 |
THREADED ENDS DIMENSIONS | ASME B1.20.1 |
PRESSURE-TEMPERATURE RATINGS | ASME B16.34 |
NORMAL PRESSURE | CLASS 150-1500 |
NORMAL DLAMETER | NPS1/2"~2" |
Design feature:
1. Bolted Bonnet or Welded Bonnet
2. WEDGE TYPE: Optional Flexible&solid wedge
3. BACK SEAT DESIGN
4. STEM IS INTEGRALLY FORGED AND CONNECTED WITH WEDGE BY T-JOINT
5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS
6. OUTSIDE SCREW AND YOKE (OS&Y)

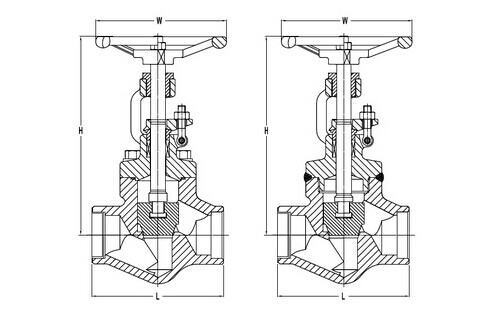

Technical Drawing:
Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
