Forged Steel Y Type Globe Valve
Products Details : Shenyang EO Valve Co.,Ltd leading China forged-steel-y-type-globe-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd is a leading China...
Products Details :
Shenyang EO Valve Co.,Ltd leading China forged-steel-y-type-globe-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China forged-steel-y-type-globe-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

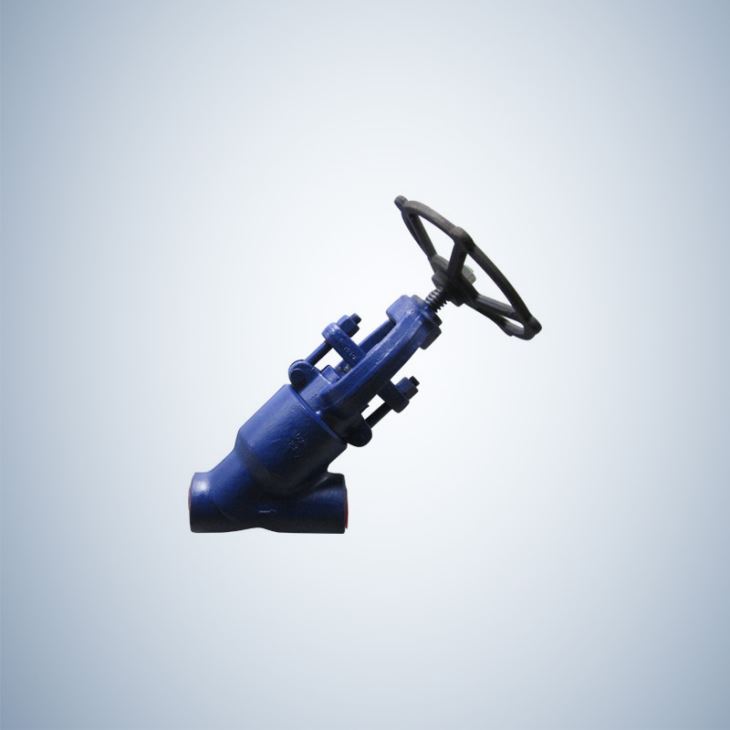

Bolted Bonnet Y Type Forged steel globe valve
Product Specifications :
Standards:
Design | ASME/ANSI B 16.34,API602,BS5352 |
Face to face | ASME/ANSI B 16.10, |
SW End Connection | ASME/ANSI B 16.11 |
Butt Weld ends connection | ANSI B 16.25 |
Flanged ends connection | ANSI B 16.5 |
Inspection and test | API598 |
Features:
Size Range | NPS1/4"~3"DN8~50mm |
Class | 150LB~1500LB |
Material | A105,LF2,F11,F22,F304,F316,F304L,F316L |
Connection | Socket welding or inner screwed |
Feature | Full bore or reduced bore,B.B or W.B or pressure seal bonnet,through way,OS&Y |
Temperature | -160°C~550°C |
Actuator | Hand wheel |
Application | Oil and gas pipeline |
Main Part & Materials:
Part Names | Part Materials | |||||||
Body | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
Bonnet | A105 | LF2 | F22 | F304 | F316 | F304L | F316L | B62 |
Disc/Ball/Wedge | A105 | SS304 | F22 | F304 | F316 | F304L | F316L | B62 |
Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L | B62 |
Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | F304 | F316 | F304L | F316L | B62 |
Packing | Graphite/PTFE | |||||||
Gasket | SS304+Graphite/SS304+Graphite | |||||||
Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
Suitable Temperature | -29~425°C | -46~340°C | -46~340°C | -196~427°C | -196~427°C | -196~427°C | -196~427°C | -29~220°C |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
