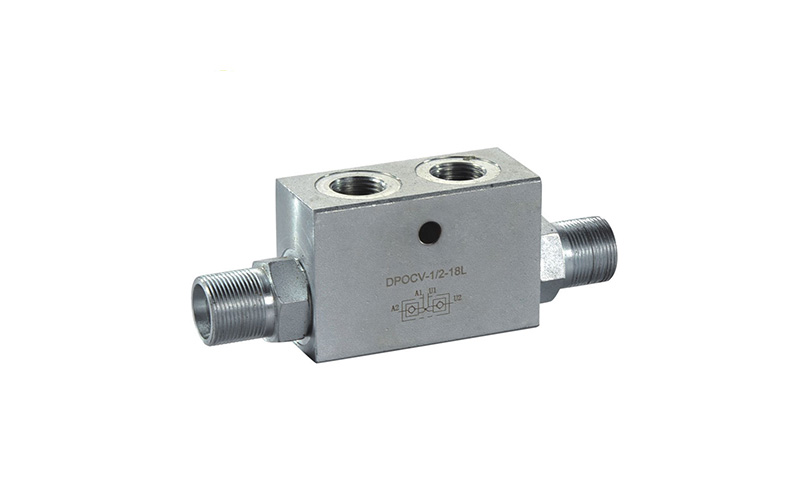

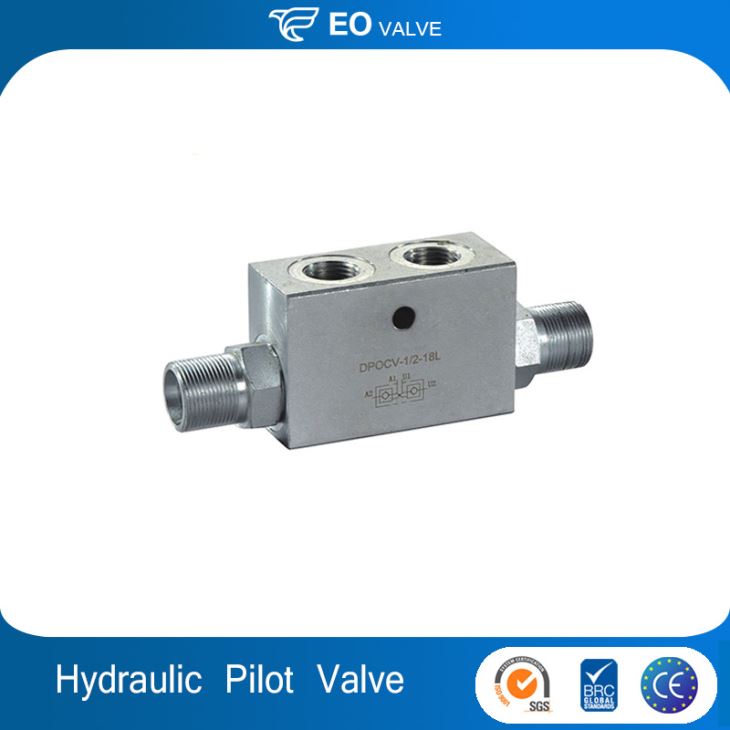

DPOCV Male Thread Hydraulic Double Pilot Operated Check Valves

DPOCV Male Thread Hydraulic Double Pilot Operated Check Valves

DPOCV Male Thread Hydraulic Double Pilot Operated Check Valves;Power:Hydraulic,Media:Oil,Place of Origin:China (Mainland),Brand Name:EO,Application:General Hydraulic, Constrction Machinery, Agricultural Mahicnery ect.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Pilot
Pressure:High Pressure
Power:Hydraulic
Material:Forged, Carbon Steel
Temperature of Media:Normal Temperature
Media:Oil
Port Size:1/4"-1/2" BSP
Place of Origin:China (Mainland)
Model Number:DPOCV
Brand Name:EO
Application:General Hydraulic, Constrction Machinery, Agricultural Mahicnery ect
Name:Double pilot operated check valve
Working pressure:up to 350bar
Max flow:80 L/min for DPOCV-12-18L
Warranty:13 months after date of on board



DPOCV  designed for heavy construction machineries and lift mechanics, which to stop and hold the movement of the hydraulic cylinder under load, usually used in chassis supporting cylinders of a Crane and other construction vehicle that needs stable platform. Those valves are:



Zero leakge

Reliable and smooth movement;

Pressure up to 350bar;

Available with Carbon Steel and Aluminum body;

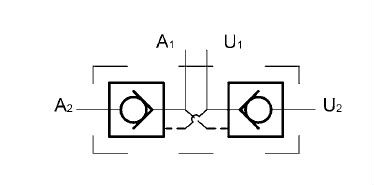

Hydraulic symbol:

DPOCV外螺纹液压双先导式止回阀

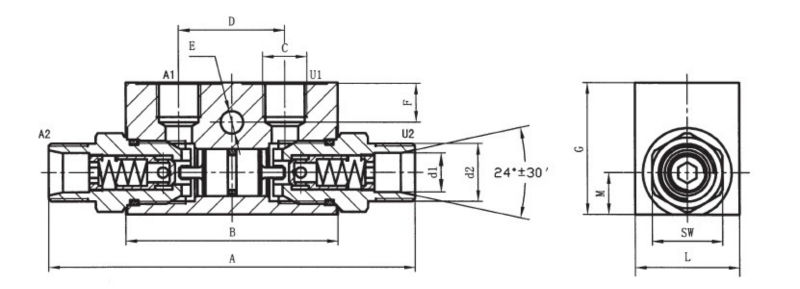

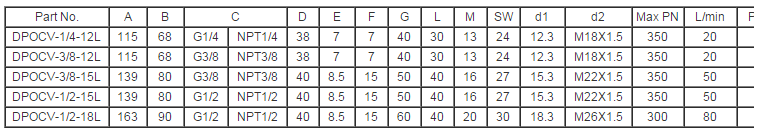

Dismensions:

DPOCV male thread hydraulic double pilot operated check valves
