Brass Stainless Steel Diaphragm Pilot Operated 12 Volt Solenoid Valve
Darhor pilot operated solenoid valve;Power:Solenoid,Temperature of Media:Medium Temperature,Place of Origin:China (Mainland),Brand Name:EO.

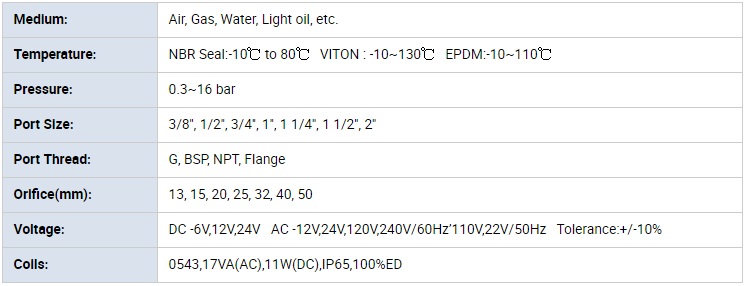

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Pilot |
| Pressure: | 0.3 ~ 16 bar |
| Power: | Solenoid |
| Material: | Stainless steel or Brass |
| Temperature of Media: | Medium Temperature |
| Media: | Water, air, gas, etc. |
| Port Size: | 3/8"~2" |
| Place of Origin: | China (Mainland) |
| Model Number: | DHD31 |
| Brand Name: | EO |
| Application: | General |
| keyword: | 12 volt solenoid valve for water |
| Port thread: | BSP, G, NPT |
| Certifications: | CE, ROHS, ISO, TUV |
| Seal: | NBR, EPDM, VITON |
| Quality warranty: | One year guarantee |
| Sample leadtime: | 5~7 days |

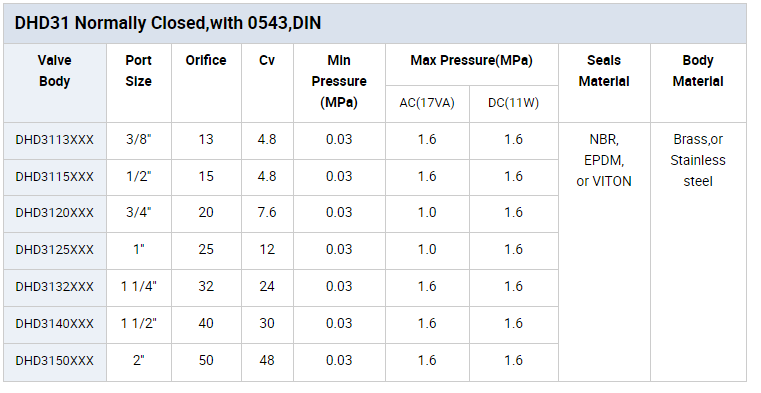

| Orifice: | 12, 15, 20, 25, 32, 40, 50 |
| Order leadtime: | 7~10 days |

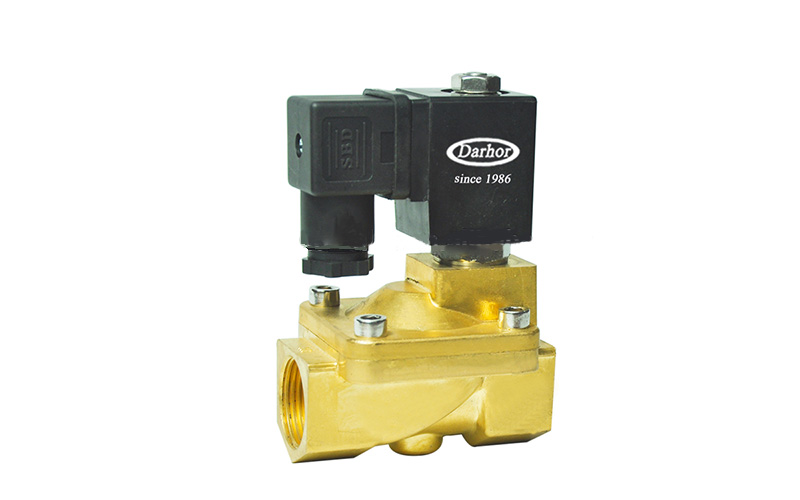

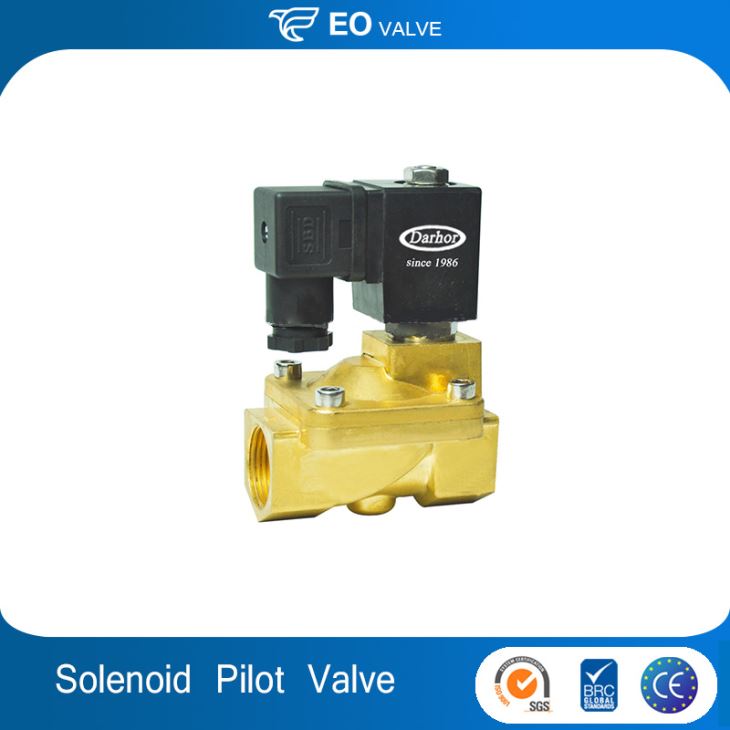

Brass stainless steel diaphragm pilot operated 12 volt solenoid valve for water air oil
Characteristic:
1,Pilot operated construction with less power consumption for longtime working;
2,Applied to pressure system open from 0.3 bars;
3,Lifespan can be at 1 million cycles. solenoid air valve for air
Material:
Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- Ss304
Shading Rings- Copper
