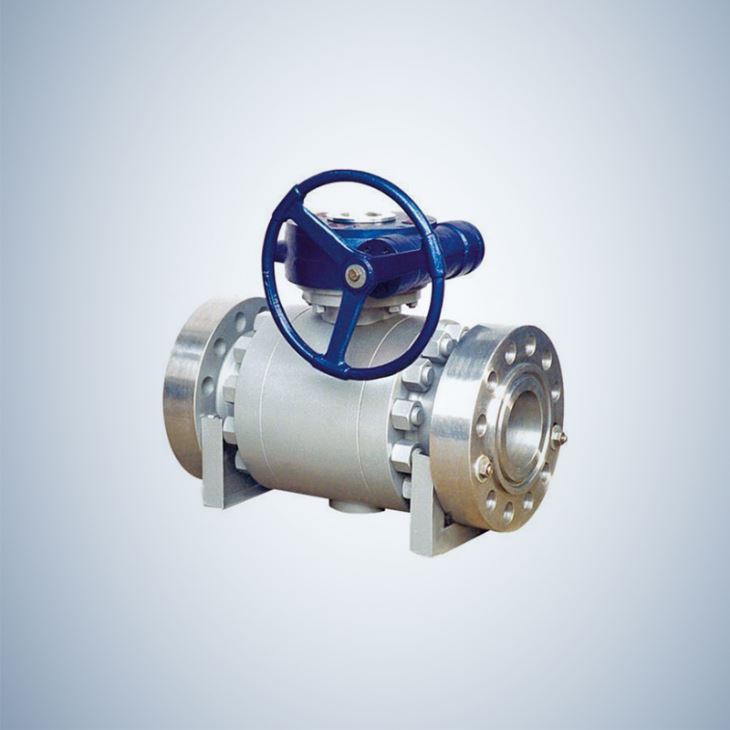

300Lbs Cast Steel Floating Ball Valve

300Lbs Cast Steel Floating Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 300lbs-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 300LB CF8 MATERIAL FLOATING BALL VALVE FLOATING BALL VALVE DESIGN......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 300lbs-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 300LB CF8 MATERIAL FLOATING BALL VALVE FLOATING BALL VALVE DESIGN...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 300lbs-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



300LB CF8 MATERIAL FLOATING BALL VALVE

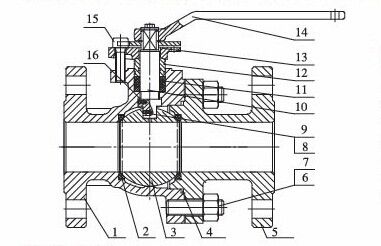

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM RING

SS+GRAPHITE/PTFE

3

PIN

A276 410

4

DISC

A216 WCB

5

SCREW

CARBON STEEL

6

SEAT GLAND

CARBON STEEL

7

STEM

A182 F6A

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY



Application:

Refinery, Chemical, Petrochemical, Power plant, Pharmaceutical


FLOATING BALL VALVE DESIGN FEATURE :

1. Full port or Reduce port

2. Fire safe certified

3. Blowout-proof stem

4. Anti-static

5. Low emission control

5. Optional locking device



Product Specifications :

ASME Standards :

B1.20.1Pipe Threads, General Purpose (Inch)

B16.10Face-to-Face and End-to-End Dimensions of Valves

B16.25Buttwelding Ends

B16.11Forged Fittings, Socket-Welding and Threaded

B16.5Flanged Fittings and Pipe Flanges

B16.47Large Diameter Steel Flanges

API Standards:

6DSpecifications for Pipeline valves

598Valve Inspection and Testing

607Fire test for soft-seated quarter-turn valves

6FASpecification for Fire Test for Valves



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
