Pressure Sealing Flanged Check Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China pressure sealing flanged check valve, sanitary check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Fujian Province Datong Reciprocity Valve......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China pressure sealing flanged check valve, sanitary check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Fujian Province Datong Reciprocity Valve...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China pressure sealing flanged check valve, sanitary check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

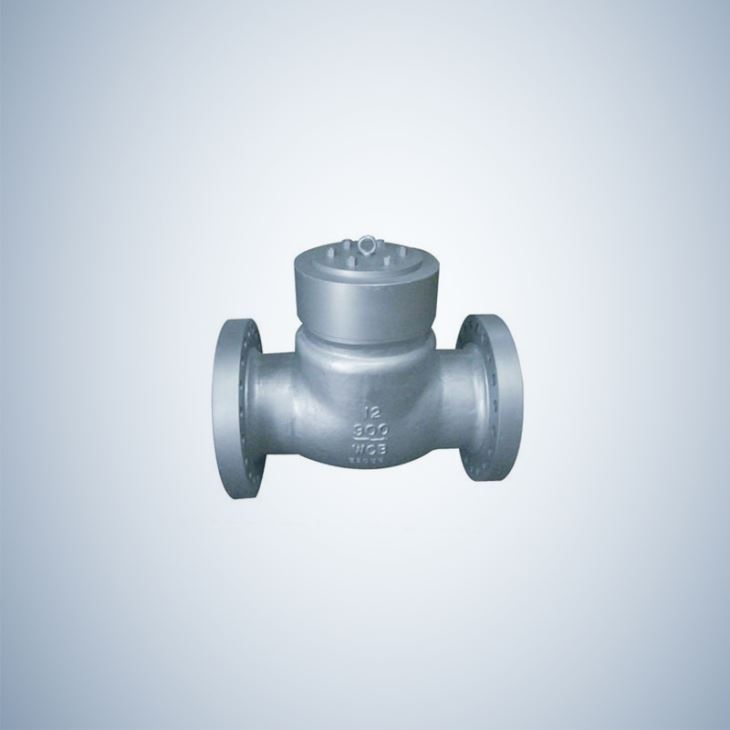

Cast Steel Flange Ends Pressure Sealing Swing Check Valve.
Product Specifications :
SPECIFICATION:
OptionSize: 2"-16"
Pressure rating: 900Lb-2500Lb
End: BW,SW or flange ends are available
Features: Pressure Cover, Swing Type Disc,
Renewable Seat Rings, Low Emission
Cryogenic, Full Bore
Standards ComplianceBS 1868/ASME B16.34/API 6D
Basic Design to API 600
Face to Face to ANSI B16.10
Flange Design to ANSI B16.5
Butt Welding Design to ANSI B16.25
Pressure-Temperature Rating to ASME B16.34
Design Feature:
1. Pressure Seal Bonnet(PSB) Design
2. Swing Disc: Disc Is Fastened Securely To Disc Hanger With a Lock Nut And Copter Pin
3. Seat Type: Welder Seat Or Integral Seat
4.Application:Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.
5.Temperature rating:-45°C - + 650 °C or above
Main Material:
ITEM | PARTNAME | STANDARD | ALLOY CARBON STEEL | STAINLESS STEEL |
1 | BODY | A216 WCB | A217 WC6 | A351 CF8M |
2 | SEAT | A105 | A182 F11 | A182 F316 |
3 | DISC | A216 WCB | A217 WC6 | A351 CF8M |
4 | DISC NUT | CARBON STEEL | STAINLESS STEEL | 316 SS |
5 | HINGE | A216 WCB | A217 WC6 | A351 CF8M |
6 | HINGE PIN | A276 410 | A276 410 | A276 316 |
7 | YOKE | A216 WCB | A217 WC6 | A351 CF8M |
8 | SEALING RING | AISI 1008 | SS304L/SS316L | SS316/SS316L |
9 | BONNET | A216 WCB | A217 WC6 | A351 CF8M |
10 | SEGMENT RING | A276 410 | A276 410 | A276 316 |
11 | COVER | A216 WCB | A217 WC6 | A351 CF8M |
12 | BOLT | A193 B7/B7M | A193 B16 | A193 B8M |
13 | NUT | A194 2H/2HM | A194 4 | A194 8M |
SEALING FACE OVERLAY | API TRIMS AVALIABLE | |||
NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST

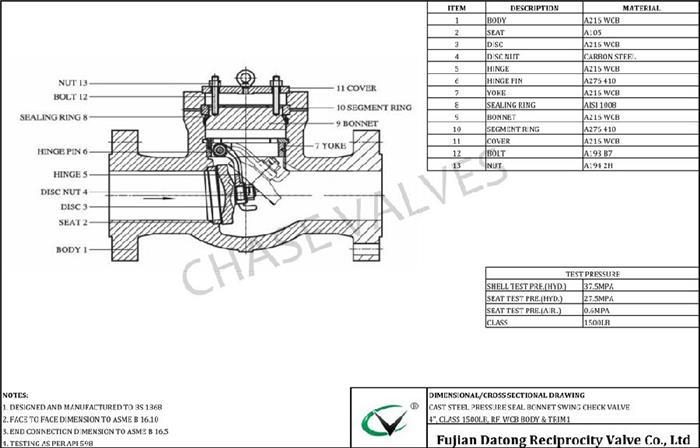

Technical Drawing(For reference):
Our Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
